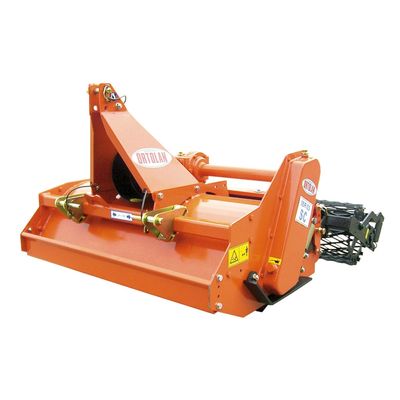

Ortolan - Model SC -Rotary Tiller-Stone Burier
FromOrtolan Srl
Stone Burier Series SC For Tractors From 15 To 28 CV (11-21 KW). The stone burier Series SC is a small-sized tiller designed to work stony soils in order to improve their preparation; particularly suitable for work on greenhouses, parks and gardens. During processing, thanks to a special selection system, the stones present in the ground are deposited on the bottom while the sieved soil layer falls on top. It is possible to combine the specific grass seeder (option). Each stone burier Series SC is available in 3 models in different working sizes of 90, 100, 120 cm. Single speed reducer 540 rpm, automatic chain tensioner, cardan shaft with safety clutch, rotor with 4 blades per flange (helical), depth adjustment roller, stone guard, 1st category adjustable attachment.
Most popular related searches
soil tillage
tractor hitch
rotary tiller
tiller
tractor
hoeing
tillage
seeder
soil improvement
greenhouse work
- CE standard equipment
- Speed reducer 540 rpm (rotor rpm 240 rpm)
- Cardan with safety clutch 1 ”3/8 z6 connection
- 1st category adjustable tractor hitch
- Available rollers: net
- Helical hoes (side hoes facing outwards)
- Chain transmission in oil bath
- Automatic chain tensioner
- Rotor with four blades per flange
- Sorting grid
Power
From 15 to 28 HP.
From 11 to 21 KW.
Weight
From 180 kg to 260 kg.
Measures
From 90 cm to 120 cm working width.
From 114 to 146 cm transport width.
Depth
Working depth in soil tillage: 12 cm.
