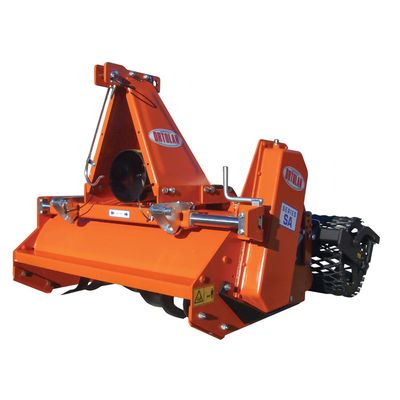

Ortolan - Model SA -Rotary Tiller-Stone Burier
Stone Burier series SA For Tractors From 20 to 45 CV (15-33 KW). The stone burier Series SA is designed to work stony soils in order to improve their preparation not only in agriculture, but also in greenhouses, parks, gardens and golf courses. During processing, thanks to a special selection system, the stones present in the ground are deposited on the bottom while the sieved soil layer falls on top. It is possible to combine the specific grass seeder (option). It is available in 3 models in different working sizes of 100, 120, 135 cm. Equipped with: single speed 540 rpm reducer, automatic chain tensioner, cardan shaft with safety clutch, rotor with 4 blades per flange (helical), depth adjustment roller, stone guard, 1st category adjustable attachment.
- CE standard equipment
- Speed reducer 540 rpm (rotor rpm 240 rpm)
- Cardan with safety clutch 1 ”3/8 z6 connection
- 1st category adjustable tractor hitch
- Available rollers: net – cage – packer
- Helical hoes (side hoes facing outwards)
- Chain transmission in oil bath
- Automatic chain tensioner
- Rotor with four blades per flange
- Sorting grid
Power
From 20 to 45 HP.
From 15 to 33 KW.
Weight
From 315 kg to 460 kg.
Measures
From 100 cm to 133 cm working width.
From 131 cm to 163 cm overall dimensions for the net roller.
Depth
Working depth in soil tillage: 14 cm.
