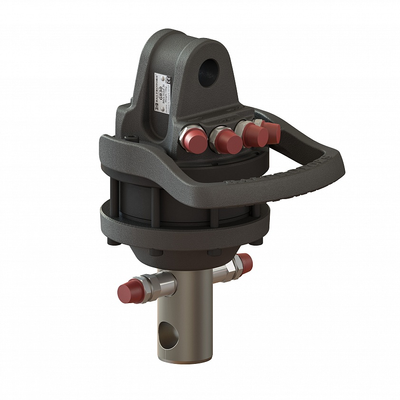

Baltrotors - Model GR30 -Rotator
FromBaltrotors Ltd
Solution for mounting on crane via link, suitable for small agricultural and forestry vehicles. Upper connection - EYE form factor of the knuckle joint. Lower connection - AXLE form factor, to be built in grapple/tool.
Most popular related searches
- Rotation : Unlimited
- Max. axial load static : 30 kN (6754 lbf)
- Max. axial load dynamic : 15 kN (3372 lbf)
- Torque : 1000 Nm (738 lb ft)
- Rec. oilflow : 20 l/min (5.3 US gallon)
- Weight : 15 kg (33 lb)
- Upper connection L : 60 mm (2.36 in)
- Upper connection D : 25 mm (0.98 in)
- Lower Axle d & hole D :
- Lower Flange d x pos & bolt hole D :
- Warranty : 2 years
