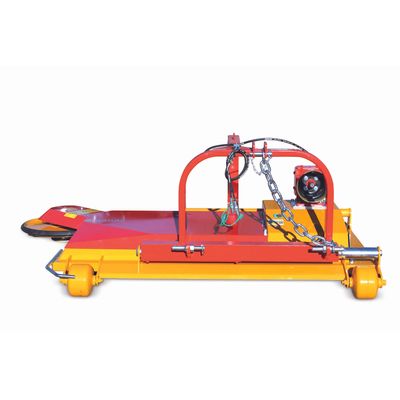

Aedes - Model RM Series -Rotor Mulcher

Lower, robust, side-adjustable mulcher WITH (or WITHOUT) lateral inter-row wheel for mowing the grass in the lane and between the plants.

Most popular related searches

Machine with a compact, robust and very low structure
Machine equipped WITH a mechanical inter-row wheel (right side) with rubber protection ring and return spring (WITHOUT inter-row wheel - on request)
Gliding disc (free on bearings) mounted under the inter-row wheel and freely movable (up and down) for optimal adaptation to terrain irregularity
Gearbox adjustment 540 RPM (750/1000 RPM on request)
Right-side rotation - distribution of the grass towards the row (distribution of’ grass towards the carriageway on request)
Rubber safety device for connection between gearbox and primary cutter spindle
Deflectors in sheet metal on both sides to allow the side discharge of the product
Height adjustable front rollers and large rear roller (Ø 170 mm) for ease of sliding and manoeuvring
Hydraulic side shift - LINEAR
Frame of three-point linkage category 1 (cat. 2 on request) mechanically adjustable with self-lubricating sliding blocks front side and small sliding wheels rear side
Third point with floating chain to allow the machine to perfectly follow the ground
Machine attached behind the tractor and used in trail (front mounting or for tractors with reverse drive on request - indicate RPM and direction of rotation PTO)
Safety-protections and “CE” certification

For the operation of this machine, the tractor needs

Standard Equipment and Key Features
