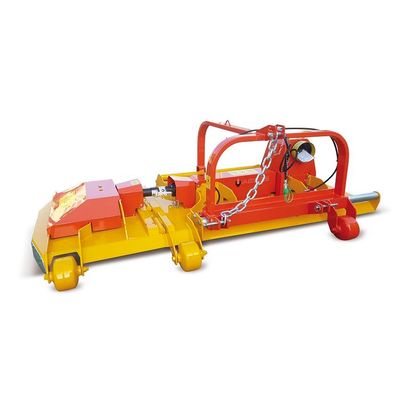

Aedes - Model RMS Series - Rotor Mulcher

• Robust machine in compact and low design
• Drive by gearbox – WITHOUT V-belts
• Right-hand body freely movable upwards for optimum ground hugging by “\_/”-plant systems and for higher tree rows (dam)
• Machine WITHOUT lateral inter-row wheel (on request)
• Gearbox with integrated free wheel – 540 RPM
• Grass distribution: central body in the middle of the carriageway, right joint body left-turning - grass distribution towards the carriageway
• Sheet metal deflectors on both sides to allow lateral discharge of the product
• Height adjustable front rollers and broad rear roller (Ø 170 mm) for ease of sliding and manoeuvring Hydraulic side shift - LINEAR
• Frame of three-point linkage category 1 (cat. 2 on request) mechanically adjustable with self-lubricating sliding blocks front side and small sliding wheels’ rear side
• Third point with floating chain to allow the machine to perfectly follow the ground
• Machine attached behind the tractor and used in trail (front mounting or for tractors with reverse drive on request)
• Cardan shaft with shear bolt
• Safety-protections and “CE” certification

For the operation of this machine, the tractor needs

• ONE double acting hydraulic valve
