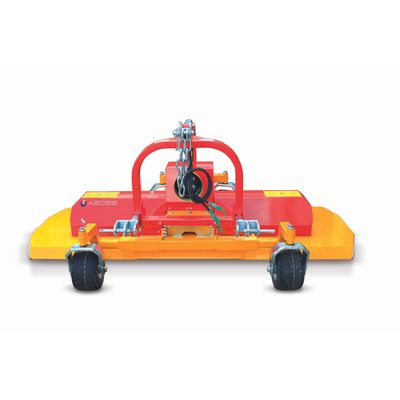

Aedes - Model Varius RMV Series - Rotor Mulcher

• Compact, extra short and robust machine with hydraulic working width adjustment
• Minimized length, the machine is very short to facilitate row head maneuvers
• Two (independent) hydraulic cylinders with connecting hoses and quick couplings for direct connection to the hydraulic distributor of the tractor
• Revolutionary transmission system
• Drive by one central gearbox and two side gearboxes, with counter-rotating cutting rotors
• Safety rubber discs between the gearboxes
• Central gearbox with integrated freewheel – adjustment 540 RPM
• Height-adjustable rollers at the front and broad roller at the rear for easy gliding and manoeuvring
• Adjustable track width (carriageway) of the front rollers
• Frame of three-point linkage category 1 and 2 - FIXED CENTRAL with chain and connecting pins
• Rear and front attachment
• Cardan shaft with shear bolt
• Safety-protections and “CE” certification

For the operation of this machine, the tractor needs

• TWO double acting hydraulic valves
