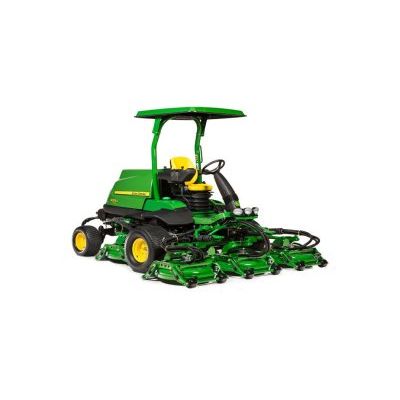

TerrainCut - Model 9009A -Rough Mower
The 9009A TerrainCut Rough Mower: where productivity and control meets cut quality. Until now, using a wide area mower in the rough meant compromising on your quality of cut. With the new 9009A TerrainCut Rough mower, you can now maximize both your productivity and your cut quality while having more control over how it performs on the course. The 9009A is a five-gang, 27-inch (68.58 cm) independent rotary deck mower with a 9-foot (2.7 m) cutting width providing all day productivity needed for golf course mowing roughs. The 9009A cut quality sets it apart from the competition with a deep shell stamped deck design and the innovative rear discharge chute for greater dispersion and a cleaner cut. Plus, changing the height of cut is no longer a labor intensive process. The 9009A deck provides a quick tool-less height of cut adjustment, which is a technicians dream, and puts you in control of height changes.
Blade options for 9009A and 7400A TerrainCut™ Rough Mowers meet a wide variety of cutting needs ... more
Engine
Type: Direct Inject Turbocharged Diesel B20 compliant
Compliant emission regulation: United States/Canada Final Tier 4
Horsepower: ---
Maximum rated horsepower: 41.1 @ 2800 rpm ISOC kW55.1 @ 2800 rpm ISOC hp
Cylinders: Four
Displacement: 2.091 L127.60 cu in.
Air cleaner: 2-stage dry element
Fuel: Diesel
Cooling system: Liquid centrifugal pump; forward machine location for optimum cooling
Vehicle
Traction drive: eHydro™ servo controlled hydraulic traction pump provides flow to All-wheel-drive GRIP system; GRIP traction provides hydraulic flow between front and opposite rear wheel for increased traction to reduce `high side tire slippage
Drive pump: Tandem gear pump
Cutting units drive: Direct-coupled hydraulic gear motor
Hydraulic system capacity: 45.4 L12 U.S. gal.
Fuel tank capacity: 60.6 L16 U.S. gal.
Steering: Hydraulic power with dual rod, double acting steering cylinder
Front drive tires: 20x12-10 4PR Turf
Steering tires: 26.5x14-12 6PR Ultra Trac
Ground pressure: 82.7 - 124 kPa12 - 18 psi
Brakes: Internal hydraulic wet disc brakes with dynamic braking through closed loop hydrostatic system
ROPS: Standard, meets ISO 21299 standards
Operating weight
Cutting units lowered: 1814.37 kg with decks up 4000 lb. with decks up
Controls
Throttle: No throttle lever; Automatic controls with AutoPedal foot controls; manual control through TechControl display
Forward/reverse: 2-pedal
Mower lift: One-touch single handle
Parking brake: Electric Switch on Command Arm for Internal Wet Disk Brakes
Seat: Air Ride Suspension seat with seat belts and arm rest; fore/aft adjustment; weight and lumbar adjustment
PTO: Electric Switch on Command Arm for quick and easy transition from mow to transport
Ignition: Key Switch on Command Arm
Work lights: 3 standard work lights in front
Tilt steering: Left Foot operated for easy adjustment
Operator display: TechControl Display: Located on Command Arm; displays machine warnings, on-board electrical diagnostics; service timers on large easy to read screen; quick on the go settings for mow and transport speed; Turn Speed; LoadMatch™ and ON/OFF Weight Transfer and Cruise Control Use selection:; Cutting unit drop rate adjustment; ALL settings are pass code protected
Storage: Operator storage located on left side for easy access from operator seat
Dimensions
Height with ROPS: 2220 mm87.4 in.
Length: 3393 mm134 in.
Transport width: 2287 mm @ 101.60 mm height of cut 90 in @ 4 in height of cut
Mowing position width: 2.74 m; 17.15 cm overlap between front and rear decks 9 Feet; 108 in; 6.75 in. overlap between front and rear decks
Wheelbase: 1750 mm68.9 in.
Ground speed: ---
Mowing: 0 - 12.8 km/h0 - 8 mph
4WD mow speed: ---
Transport: 0 - 20.12 km/h0 - 12.5 mph
Reverse: 0 - 6.4 km/h0 - 5 mph
Cutting Units
Number: 5
Size: 68.58 cm27 in.
Total width of cut: 2.74 m; 17.15 cm overlap between front and rear decks 9 Feet; 108 in.; 6.75 in. overlap between front and rear decks
Height of cut: 1.91 to 10.2 cm; no tool adjustment .75 - 4 in; no tool adjustment
Construction: single sheet 10-gauge steel stamped deck with front skid plate 1.5 inch (38mm) tall and ½ inch (12.7mm) thick steel stock welded to the decks edge
Frequency of clip (FOC Reels) OR Blade tip speed (decks): 409 m16,097 fpm
Rollers: Rear: 7.62 cmRear: 3 in.Front: 12.70 cmFront: 5 in.
Reel diameter: ---
Bedknife adjustment: ---
Backlapping: ---
Sound levels
Operator ear full engine: 90 dBA
Operator ear reduced engine rpm (2300 rpm): ---
Measuring standard: ISO 11201
Attachments installed: ---
Fuel Economy
Actual Fuel usage will vary depending on course conditions, operation, turf and fuel quality: 25% load 3.63 Liters per hour (.96 GPH) 40% Load 5.64 Liters per hour (1.49 GPH) 50% Load 6.85 liters per hour (1.81 GPH )
Warranty
Type: Two-year limited
Certification
Type: ANSI B71.4-2012.; CE
