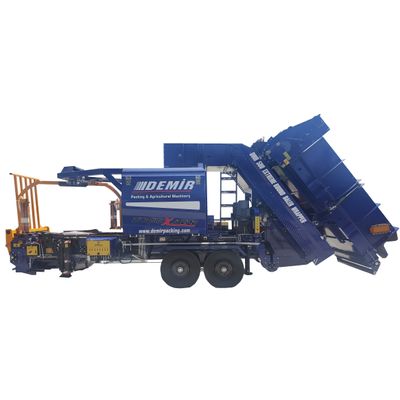

DEMIR - Model 100-500-1000 - Round Agriculture Baler & Wrapper Machine
Best way to retain product freshness and preserve quality by wrapping harvested materials such as silage , pulp, sawdust, all roughage feeds etc.. in range of 100 ; 500 ; 1000 kg . Our machines provide a significant contribution in the feeding animals by preserving materials’ longtime freshness if bale protected under appropriate conditions, protect its freshness long times and productivity so that the expenses stemming from animal feed is minimized.-Easy loaded and folding bunker submit easy material loading without too much labour.
-Speed adjustable conveyor transfers and mix materials to the press room and protect blockage in the throat of the press room.
-Improved press room provide optimum press with rubber belt.
-Net wrapping unit help to protect of bale shapes by covering it by net. Works with hydromotor.
-Material recycling units help to transfer the materials, which fall out from press room or bale, to press room again.
-Bottom conveyor belt transfer the bale from bale room to strech wrapping unit.
-Double arm strech wrapping unit provide optimum wrapping to protect the materials from external factors.
-Wrapper system has proportional valve and can be operated at the desired speed. Works with hydraulic system
-All the bearings, chains and gears have automatic lubrication.
-Because of machine works with proportional system, there are double hydraulic pump and double cooler system
-Machine has remote control system.
-Machine can bale the materials such as ; maize silage, beet pulp, fruit pulp, roughage and garbage.
Model DMR 100 DMR 500 DMR 1000
Capacity / Bales 50 – 60 bales / h 50 – 60 bales / h 50 – 60 bales / h
Bale Weight 75 – 105 kg 450 – 500 kg 1000 – 1200 kg
Power Consumption 17 kw / h 38 kw / h 60 kw / h
Required Power 30 – 50 hp 70 – 100 hp 100 – 140 hp
Bale Diameter 55×60 cm 80×100 cm 110×120 cm
Control System PLC PLC PLC
Press Unit Rubber Belt Rubber Belt Rubber Belt
Vehicle Connection Drawbar Drawbar Drawbar
Stretch / Net Width 25 / 70 cm 50 / 110 cm 75 / 125 cm
Stretch / Net Control Automatic Automatic Automatic
Hydraulic System Standard Proportional Valve Proportional Valve
Lubrication Manual Automatic Automatic
Height / Width 270×235 cm 340×350 cm 380×350 cm
Weight 6000 kg 8500 kg 16600 kg
Length (working) 850 cm 1200 cm 1400 cm
Length (transport) 600 cm 970 cm 1100 cm
