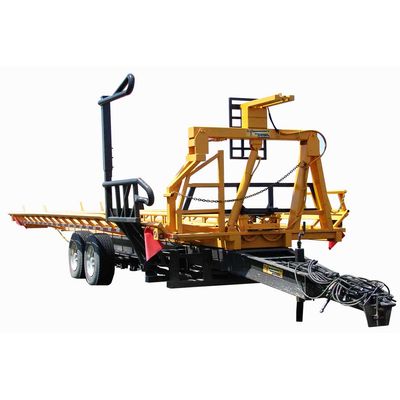

Round Bale Buggy

From

0

The Bale Buggy is built with the Commercial hauler in mind, picking bales in the fall usually means wet conditions, this unit is extremely good in wet conditions with its super single flotation tires. This unit is built to haul tens of thousands of bales per season.

Tractor Pulled Bale Buggy
  • Available with or without top tier loading system
  • Super single flotation tires
  • Load and unload bales with ease
  • Fully road legal with LED signal, brake, and hazard lights

Single Tier Capacity: 14 bales (5′ diameter)
  • GVWR: 50,000 lbs or 22,680 kg
  • Tractor requirements: 100 HP
  • Hydraulic controls requirement: 4 function
  • Tires: (4) 385/65R22.5 Super Single tires
  • Tire ply / load rating: 18/J (62 mph or 100 km/h)
  • Rims: 10 bolt pattern aluminum rims
  • Axles: (2) 25,000 lb axles with spring ride, oil bath bearings
  • Deck length: 37′ (11.3 m)
  • Transport width: 12’6″ (3.8 m)
  • Lighting: Full LED light package including clearance, signal, brake
    and strobe lights
  • Sprockets: 4140 Hardened Chain Drive
  • Hitch: Adjustable industrial pintle hitch with rotating socket
  • Hoist: Cancade 2627 Scissor Hoist
  • Options: Quick detach deck to grain or silage body
Two Tier Capacity: 20 bales (5′ diameter)
  • GVWR: 50,000 lbs or 22,680 kg
  • Tractor requirements: 150 HP
  • Hydraulic controls requirement: 6 function
  • Tires: (4) 385/65R22.5 Super Single tires
  • Tire ply / load rating: 18/J (62 mph or 100 km/h)
  • Rims: 10 bolt pattern aluminum rims
  • Axles: (2) 25,000 lb axles with spring ride, oil bath bearings
  • Deck length: 37′ (11.3 m)
  • Transport width: 12’6″ (3.8 m)
  • Lighting: Full LED light package including clearance, signal, brake
    and strobe lights
  • Sprockets: 4140 Hardened Chain Drive
  • Hitch: Adjustable industrial pintle hitch with rotating socket
  • Hoist: Cancade 2627 Scissor Hoist
  • Options: Quick detach deck to grain or silage body
