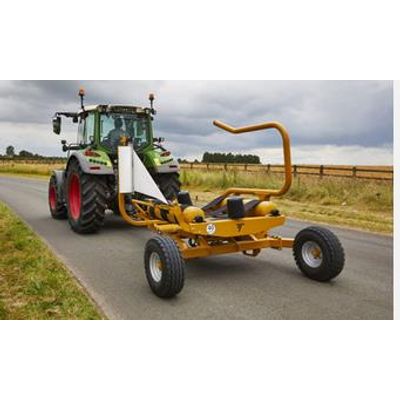

Tanco - Model E100 SA - Round Bale Wrapper
The E100 SA contains the same design and quality components expected of a Tanco product, giving small to medium sized operators peace of mind that the E100 SA will perform reliably year after year. The wrapper is cable operated, using 3 individual levers to operate all functions of the wrapper. The semi-automatic ‘One-Touch’ system holds the wrapping function lever in place, allowing the operator to release the lever until the wrapping cycle is complete, greatly improving the comfort of the operator.
Automatic Cut & Start
Once the bale is ejected the hydraulic Cut & Start is automatically engaged to hold and cut the plastic, dramatically improving output times.
Swivel Wheel
The right-hand wheel can be folded out when in operation and folded in for transport, allowing the E100 SA to carry bales up to 1,000kgs.
RDS Controller
An RDS Controller monitors the number of revolutions of the bale, as well as counting the number of bales wrapped in a period.
Hydraulics: E100-SA
- Min. Oil Consumption (l/min) (US gal/min): 25 / 6.6
- Max. Oil Consumption (l/min) (US gal/min): 60 / 16
- Min. Oil Pressure (bar) (PSI): 150 / 2200
- Free Flow Return Required: Yes
- Load Sensing Option: No
Operation: E100-SA
- Cable Controlled Valve Bank: Yes
- Joystick Controls: No
- Programmable Computer Controls: No
- Remote Control: No
- Automatic Hydraulic Cut & Start: Yes
- Auto-Load: No
Pre-Stretcher: E100-SA
- One Pre-Stretcher 750 mm (30”): Yes
- Two Pre-Stretcher 750 mm (30”): No
- Three Pre-Stretcher 750 mm (30”): No
- Adapter for 500 mm (20”) Film: Opt
