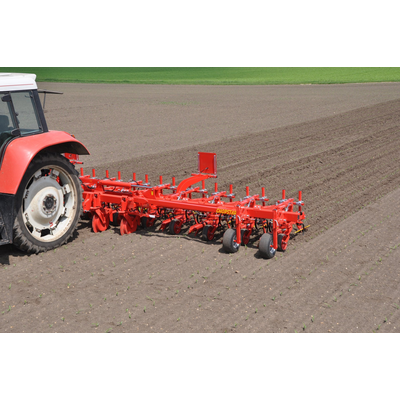

Einböck - Model CHOPSTAR 5-90 - Row-Crop Cultivator
The CHOPSTAR 5-90 has up to 5 tines per hoeing element and is used in row-crops with up to 90 cm / 35.40" row spacing, such as corn, sunflowers, etc. Depending on the conditions and the aim of the hoeing pass, a variety of tools such as heaping elements, heaping sweeps, weeder tines mounted behind the elements, finger weeders etc. can be attached to the front or rear implement. The precision of the CHOPSTAR 5-90 can be further optimized with the camera steering and the ROW-GUARD sideshift frame, the SECTION-CONTROL parallelogram lift and other additional options.
- Row hoe with vibro tines
- Perfect mechanical weeding
- Increased aeration
- Disruption of capillary action
- Breaking of crusts
- Suited for various crops and row distances
The concept of the CHOPSTAR row hoes is its variability and the many possibilities of individual tools for various crops. The same strong and solid frame is used for all row hoes. Almost any row hoe can also be equipped with the automatic camera steering system ROW-GUARD.
To our standard hoeing technology
- Row spacing adjustable up to 90 cm / 35.40"
- Lower links guided on both sides
- Rear mounted machines: autom. upper link steering with spindle and high-gauge wheels
- Adjustable retraction support on each parallelogram
- Farmflex-feeler-wheels adjustable by spindles, ball bearing mounted, Ø 300 mm / 11.80" / 100 mm / 3.90" wide
- Robust, adjustable parallelogram
- Last tine with reinforcement spring and height adjustable
- Particularly good side adjustable tines
- Parallelogram guided crop deflector plates (height adjustable) or crop deflector discs (can be fixed, when they are raised up) available as options
- Hoeing element complete with 5 S-tines
- Hoeing element with 3 S-tines
- Front mounted machines with track indicator for improved guidance
- Conversion from rear to front mounting
