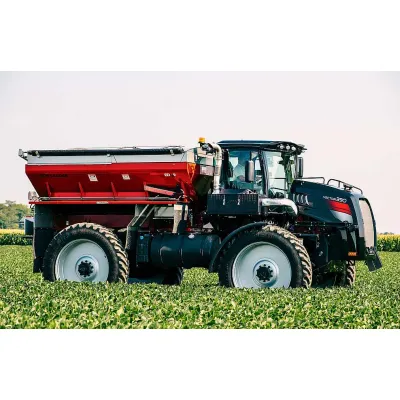

RBR Enterprises - Model Vector 390 - Row Crop Spreader
The Vector 390 is a highly efficient row crop spreader that leads the market with exceptional capacity and advanced components. Its true 4X4 capabilities enable early field access with minimal soil impact, and its mechanical drive system ensures superior transfer speed and torque for challenging terrain. This spreader also boasts high road speeds for extensive daily coverage, minimizing downtime. Its versatile design accommodates a range of row crop and flotation tires, making it viable for use throughout the growing season. The operator cab promotes focus and efficiency with intuitive controls and accessible information. The optional 2X4 and 4X4 settings guarantee reliable performance in adverse conditions. The Vector 390 is designed specifically for high-capacity, efficient operation and is ideal for maximizing productivity in agricultural applications.
The Vector 390 is the highest capacity row crop spreader on the market featuring the highest grade components and top tier performance. True 4X4 capabilities allow you to access the field sooner with minimal soil disturbance. The mechanical drive system provides best-in-class transfer speed and gives you the torque you need to tackle any field.
TRANSFER SPEED
Our mechanical drive system allows for higher road speeds to maximize acres covered per day and minimize non-revenue generating drive time.
MULTI-SEASON REVENUE
With the capability to swap between a variety of row crop and flotation tires, the Vector offers the versatility of a pre and post plant machine, generating revenue all season long.
MINIMIZE LOAD TIME
Spend less time loading and more time generating revenue with the largest capacity row crop spreader on the market.
OPERATOR COMFORT
The cab is designed specifically for application equipment to create an environment for maximum focus and efficiency. Controls and information are easily accessible and intuitive, providing all the information necessary to assist the operator in safe and effective machine operation.
SELECTABLE 4X4
With the ability to select between 2X4 and 4X4, you can have the confidence your machine will perform in the most adverse conditions
- ENGINE MAKE / DISPLACEMENT : Cummins QSL 9 Liter Tier 4F with Compact Catalyst (CCC) and Selective Catalytic Reduction (SCR)
- HORSEPOWER @ 2000 RPM : 390HP (optional 430 HP)
- FUEL / DEF CAPACITY : 150 gal / 15 gal
- TRANSMISSION : Allison Automatic 3000 RDS with Dual Mode Shift Select & Shift-Lock
- TRANSFER CASE : Marmon Herrington 2-speed 2.5:1 ratio (5 speed low range / 4 speed high range)
- 4 WHEEL DRIVE : Selectable 2x4 - 4x4, Standard on all axle configurations
- AXLES - STANDARD FIXED TRACK : Meritor wheel end plantery, s-cam brakes, front & rear differential lock (36,000# front / 36,000# rear)
- AXLES - OPTIONAL ADJUSTABLE WIDTH / 4-WHEEL STEER : Variable Track Axle (VTA) – Axle Tech adjustable wheel track 114in to 144in, 4-wheel steering (32,000# front / 32,000# rear)
- SUSPENSION : High Capacity Air-Ride Suspension with Heavy Duty Shocks, in-cab airbag dump, greaseless torque rods with extended-life polycarbonate bushings
- CAB CONTROLS : 7" Touch screen engine monitor with interactive diagnostics
- CAB HVAC : Auto Climate Control
- CAB RADIO : FM/AM/XM Radio with Bluetooth
- CAB COMMUNICATION : Remote Chassis Telematics - Subscription Free
- CAB OPTIONS : Heated and Ventilated Leather Seat, Leather Wrapped Steering Wheel, High-Intensity LED Lighting, and Window Tint
- FRAME : 10" x 4" x 3/8" High Strength Tublar Steel with 40 mil Polyurea Coating
- OVERALL LENGTH : 292 in. (7.41 m)
- WHEELBASE : 168 in. (4.26 m)
- OVERALL WIDTH : 135 in. (3.4 m)
- OVERALL HEIGHT : 147 in. (3.73 m)
- WEIGHT - SINGLE PRODUCT : 22,480 lbs.
- WEIGHT - DOUBLE PRODUCT : 23,600 lbs.
- WEIGHT - TRIPLE PRODUCT : 24,000 lbs.
