Doyle - Model Big Shot - Row Crop ...

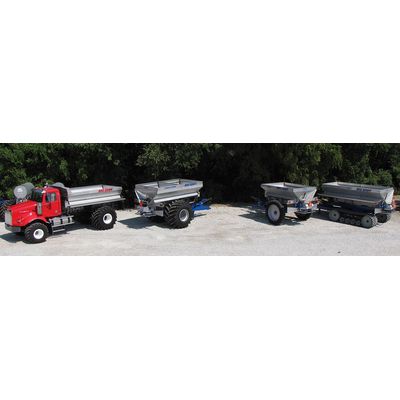

Doyle - Model Big Shot - Row Crop Spreaders

FromDoyle Equipment Manufacturing Company

SHARE

102-1/4″ wide, #304 stainless steel hopper construction. 88″ overall width – 120″ max. overall width (2 different models). Hoppers available in 11′ thru 14′ lengths. 2″ x 4″ #304 stainless steel tubing cross supports. 30″ wide belt over chain, heavy pintle chain, 3/8″ thick cross bars with multi-ply belt.

Most popular related searches

row crop spreader

tractor hydraulic

commercial fertilizer

fertilizer spreader

lime fertilizer

lime fertilization

fertilizer spreading

Double PWM valves for belt & spinner control
Closed loop spinner control
Extra heavy duty 6:1 reducer spur gear conveyor drive (high efficiency-low maintenance)
Includes heavy duty oil cooler with twin fans, 42 gallons per minute
Standard with 24″ dual dished spinners, mounted on #304 stainless steel undercarriage
“Easy-Set” fully adjustable material divider which allows fine adjustment in spread pattern (fertilizer or lime), all #304 stainless steel
Hydraulic valve and encoder is mounted towards the front of the box, which keeps it out of corrosive environment at rear of box
Material sensor on gate, let’s operator know when material is out
Front mounted #304 stainless steel oil reservoir, eliminates side spills and evens weight distribution
Fulul-float #304 stainless steel fenders, with mud flaps
Includes all L.E.D. lighting, with standard 7 pin connector
Factory assembled & tested

Raven Viper control system
John Deere rate controller
Ag Leader control system
Plug ‘n Go to tractor hydraulics
Roll tarp
