Saphir - Model 7 - Seed Drill

Saphir - Model 7 -Seed Drill

The Saphir 7 mechanical seed drill offers medium-sized farms a reliable, high performance drill to meet high work demands during busy periods. The Saphir is versatile and can be combined with a variety of implements, such as the Zirkon power harrow or the Quarz compact cultivator, to gain optimum operating efficiency.

Most popular related searches

seed drill

mechanical seed drill

A spiked land wheel, maintenance-free cardan drive, and continuously variable oil bath gearbox guarantee simple, accurate seed metering. Precise adjustment for seed rates of 0,5 to 500 kg/ha is possible. The smooth running seeding shaft ensures accurate seed distribution in the row.
The new hexagonal seeding shaft with quick-change device makes it easy to change the seed wheel, providing optimum metering over a range of seed types.
Precise seed depth is achieved by the parallelogram-mounted Double Disc coulter with depth control wheel.
The standard Easytronic implement control system allows reliable, convenient control and monitoring of tramline function.
Available for mounting directly on a cultivator, on a power harrow or compact combination or as as Saphir AutoLoad for three point linkage mounting, the Saphir has hopper volumes of 650 to 1,100 litres.

Electronic seed drill control Easytronic incl. automatic tramline mechanism, hectare counter and automatic user guidance for calibration
Intermediate plates (from Saphir 7/300 on)
Two-piece seed wheels »Conti Plus« (or one-piece seed wheels »Mono Plus« for peas up to 150 kg/ha or onepiece seed wheels »Mega Plus« for peas and beans more than 150 kg/ha)
Tramline mechanism 2 x 2 rows
Quick-change device for seed wheels
Stepless oil bath gearbox
Discharge wedges
Forward folding cover
Mechanic hopper level indicator
Drive wheel
Loading platform with steps

Saphir - Model 7 -Seed Drill

A spiked land wheel, maintenance-free cardan drive...

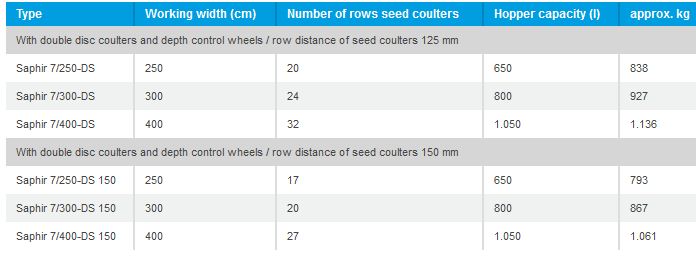

Technical Data

Standard Equipment
