Armfield - Model FT25X - Scraped Surface Heat Exchanger
The FT25X range of miniature-scale scraped surface heat exchangers has built-in control and flexibility with a graphic representation of the process on the touch screen control panel. The operator can choose the parameters required for any particular formulation, these include margarine/icecream/crystalisation processes. The FT25X has a number of configurations according to the required use. Armfield miniature-scale technology is well established at offering developers the opportunity to run small trials, which provide enough information to enable scale-up to larger plant with confidence. The formulations go through similar physico-chemical changes as they would in production plant and real time data logging permits results to be recorded and repeated.

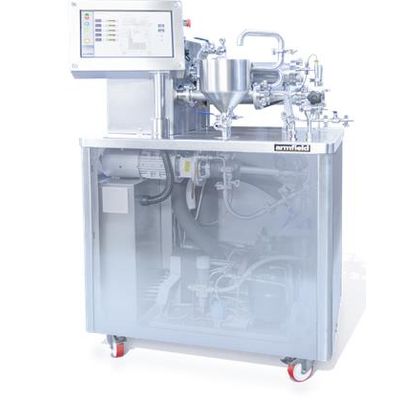

The FT25X Scraped Surface Heat Exchanger Series based on the the Armfield Food rated stainless steel frame with improved HMI touch screen. The working platform can accommodate one or two barrels (B) and a variable speed pinworker (P) alongside the hopper and connection ports.
The unit is housed in a Stainless Steel (304) cabinet with removable sides for easy access. It uses a refrigeration system supplied within the cabinet with a chilled, food-grade refrigerant, which is pumped through the barrel jackets. An air incorporation system and CIP kit can also be added if required.
Small batch sizes enable rapid product testing. Enhanced CIP facility available (FT52).
Note: For Scraped surface heat exchanger applications involving product heating, UHT, or combined heating and cooling, please enquire about our FT174X – Modular Miniature HTST/UHT Process System.
Heat Exchanger Barrel
- Heat transfer area: 0.045m²
- Shaft/barrel volume ratio: 1 : 3.5
- Scraper blades: 4 PEEK scrapes along stainless steel shaft, 2 pairs with 180° separation
- Barrel length: 0.35m
- Barrel working pressure: 20.0 bar or 40.0 bar
Pinworker
- No of pins on shaft: 36
- No of pins on barrel: 36
Barrel/pinworker drives
- Variable speed ac motors, inverter controlled
- Speed range: 0-1400rpm
Refrigeration system
- Food grade refrigerant: -25°C capability (Tyfoxit 1.20)y
Feed pumps
- Progressive cavity pump
- Process throughput: 0-20l/h, independent of back pressure
- Particulate capability: up to 0.6mm
- Fibre handling capability: up to 25mm
- Air incorporation system: Air pump with digital flow controller
NOTE: Air incorporation system uses an integrated air pump and fine filter supplying air to the suction feed.
- Duplicates full-scale process
- Fast, accurate new product development
- All process parameters under operator control for maximum flexibility
- Rugged and reliable units
- Only requires electricity and water to function
- Full control of barrel speeds to over 1400rpm
- Temperature control system incorporated
- Integral control panel enabling simple control and monitoring of all major variables
- Enclosed self-contained, mobile, stainless steel service cabinet for easy cleaning and wash down with removable panels
- Stainless steel barrel with PEEK scrapers
- Hygienic design
- Made from 316 stainless steel
- In cabinet refrigeration
Available:
- Variable speed pinworker for margarine and soft spreads
- Air incorporation system
- Computer data logging facility
- Pinworker
