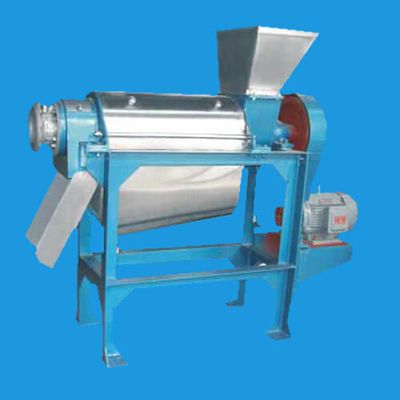

Greatwall - Model AMS-LZ - Screw Juice Extractor Machine

Amisy screw type fruit juice extractor machine is suitable for extraction of juice from various fruits and vegetables. The screw juice making machine is equipped with the screw and perforated screen assembly. The pressure for extraction can be adjusted in the pressure plate assembly. Thus juice and the waste get separated by the juice extractor and discharged respectively. Due to efficient juicing effect, the screw juicer machine is widely applied to make juice of many kinds of fruit and vegetables, such as apple, pineapple, orange, pomegranate, carrot, spinach, celery, tomato and so on.

1. This juice extractor contains two functions: crushing and juicing, which is economical and efficient.
2. Made of high-quality stainless steel to ensure sanitary and easy to clean the extractor.
3. Equipped with filtering screen to keep from impurities to ensure 100% fresh and natural.
4. The screw juice machine can also be called pomegranate juice extractor and it is widely suitable for processing many kinds of vegetables and fruits.
5. The juicing machine is flexible to be used alone, or with other parts connected together.

Raw materials are fed into the feeding hopper and spirally pushed by the screw. Meanwhile, the volume of helical cavity reduces, materials are pressed by the boosting ofthe spiral. Thus the extracted juices will flow into the juice collector through the filter screen, and the material slags will be ejected through the ring interval formed between the spiral and the pressure adjusting taper part. The movement towards the axial direction can adjust the interval clearance so as to adjust the juice extracting rate. Notice: fruits and vegetables processed by our screw juicer machine should be peeled and cored first.

1. The machine should be installed horizontally, and fixed by ground screws.
2. Raw materials should be fed evenly, and hard foreign materials are forbidden into feed hopper to avoid damaging filter screen.
3. Bearings: Replace grease at regular intervals, and the normal temperature of bearings in operation is less than 75eC.
4. Maintenance: The filler screen should be cleaned with water and brush after every shift of woricwhen process fruits with much fiber, filter screen should be cleaned twice.
