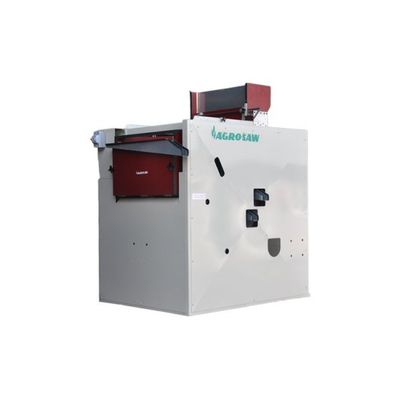

AGROSAW - Model UC-I -Seed Cleaner

The UC-1 is the first in a line of small cleaners designed to meet the low maintenance and easy clean out requirements of today`s seedsman. The UC-1 is built with the same care and Craftsmanship as AGROSAWs large precision cleaner.

The UC-1 feature a heavy duty tubular steel frame 50x50mm. FTP plywood (Thilc21 mm) and a heavy duty eccentric cradle dnve.

Screens
The UC-1 cradle has been designed with three 556 X 610 mm screens. One screen for the top and the other two for lower separation.

UC-I Commodity Flow

• The commodity is fed into the hopper and is spread evenly across the full width of the top screen.
• The product than moves across the top screen, which has opening larger than the product itself.
• The large foreign material is "scalped" off while the good product falls through the screen.

The bottom two screens are set up for spirt flow sifting. The bottom screen opening must be smaller than the commodity being cleaned. Trash . weed seed and splits drop through the bottom screens while good product passes over them. The bottom two screen can also be set up as a scalp/sift flow by removing the two- way splitter.

Next the product is routed through a column of air from the bottom blast fan. This blast of Air effective removes any lightweight trash and dust that may have remained after screening. Good clean product is discharged at the bottom of the air chamber

Machine screen arrangement facility: -

1. Double scalping single grading, than the product itself
2. Single scalping double grading.
3. Single scalping single grading with relief screen.
