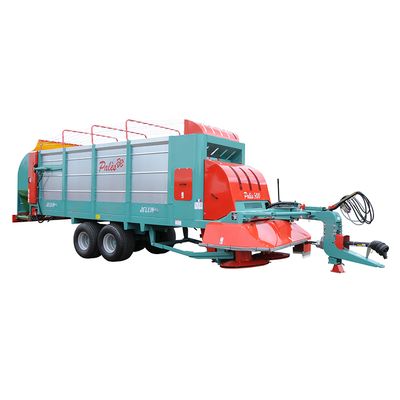

Pales - Model 200 - 300 - 300 XL - Self Loading Trailers
Cutting system: 2 drums rotary mower (2×4 blades, oil bath case, free wheel incorporated. Cutting width2100 mm. Height setting of the rotary cut thanks to 2 hydraulic cylinders. Cutting system suspension by 2 springs. Cutting indicator position. Conveyor width 950 mm composed of 6 combs equipped with 8 teeth and 8 blades. Hydraulic driving of the conveyor by an hydraulic moto reductor with oil bath. Cutting system protection cover.
Unloading
Floor conveyor Marine chain Ø12 (haute résistance) bars made of dismantables tubes with manufactured ends ®
Driving of the floor conveyor by moto reductor oil bath, flow adjustment
2 shredding rotors hydraulic driving Palès 200 – 300
6 shredding rotors hydraulic driving Palès 300 XL
Rear bilateral unloading floor in PVC, width 800 mm and unloading height 700 mm
Rear unloading with a complete hydraulic opening
Control
Electric control of all the functions with a mobile control box in the tractor’s cab
Hydraulic group of the conveyor and the rotors, hydraulic oil tank capacity 200l
Conception – Safety
Bolted housing
Lateral door
Road traffic
Low linkage beam with hydraulic dish
Linkage under the transmission
Parking brake and hydraulic brake on the 4 wheels
Light in accordance with the road code
Revolving light
Hydraulic kickstand with manual pump
Pendulum 4 wheels 400 x 15.5
CE norms and DREAL homologation
Transmission
PTO transmission with protection, transmission sleeve and safety bowl machine side
1/2 wide angle PTO shaft tractor with protection
Tractor equipment
PTO shaft for 540 rpm
Electric plug 12v/3 pins for valves
Electric plug 12v/7 pins for light
Hydraulic distributor SE with 2 direct return to the tank
Linkage piton
Cutting system – Unloading
– Cutting system hydraulic driven – Jeulin patent
– Hydraulic clutch of the cutting system
– Stones discs – pair
– Insoles for lower disk protection – pair
– Cutting system setting brace thickness 30 mm – pair
– End of unloading indicator
– Hydraulic rear door (rear unloading) erase shredders and mat (- 250 kg)
– Lateral unloading R or L door with mat (without schredders) with 5 blades in conveyor, unloading height 0,60 m, hydraulic lifters
– Precise the unloading side at the order
Axles – Pneumatics
– Following pendulum axle with hydraulic blocking
– Wheels 19/45 x 17 (866×491) – 4 wheels
– Wheels 520/50 x 17 (952×516) height increasing of 0,60 m compared to 400/60×15,5 – 4 wheels
– Spare wheel 400/60 x 15,5
Control
– Electric reverser of unloading mat
– Electric adjustment of flow for unloading mat (1 direction)
Weighing
Weighing 5 sensors (4 sensors on axle, 1 sensor in the drawbar)
Others
– Mudguards – pair
– MOTEC camera with screen (location to be precised)
– Additional MOTEC Camera (location to be precised) – REF 9570 compulsory
– 1/2 wide angle PTO shaft machine side with protection
