Senator - Model 22|9 - Self Loading ...

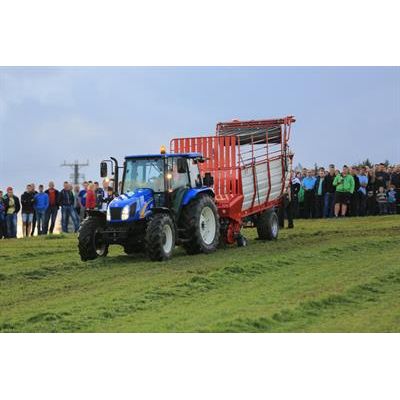

Senator - Model 22|9 - Self Loading Wagons

Self-loading wagon with capacity of 22m3. The universally designed drawbar can easily be adapted for mounting onto a lower or upper trailer hitch on the tractor. The hydraulic cylinder on the linkage allows for the entire front part of the wagon to be additionally lifted for an easier transfer of feed into the silo.

Most popular related searches

The serial holding plate ensures that shorter fresh, wilted and dry forage is picked up quickly and efficiently.
The one-piece conveyor unit with four loaders evenly transports the forage into the cargo space.
Chain floor conveyor with two chains. The scraper bars are made of a quality material resistant to bending and contortion.
The pick-up unit with five rows of spring flails ensures quick and clean feed pick-up. The roller conveyor unit with four wings and 9 individually protected blades cuts the forage and loads it evenly into the cargo space.
The hydraulic brakes (optional equipment) are especially suitable for use on slopes or with small tractors.
The low centre of gravity and wide track are suitable for operation on slopes (optional equipment).

Transport length (m) 6,73
Transport width (wide track) (m) 2,06 (2,38)
Transport height - max/min (m) 3,12/2,40
Transport height (low centre of gravity, wide track) - max /min (m) 2,76/2,00
Volume (max/min) (m3) 22/12,5
Volume DIN11741 (m3) 14,52
PTO rotation speed (rpm) 540
Weight (kg) 1912
Required tractor power (kW/HP) 25/34
Number of blades 9
Pick-up unit width (m) 1,53
Max. total weight (kg) 3500
Max. axle load (kg) 2900
Max. load of towing eye (kg) 600

Senator - Model 22|9 - Self Loading Wagons

Products Details

Tecnical Data

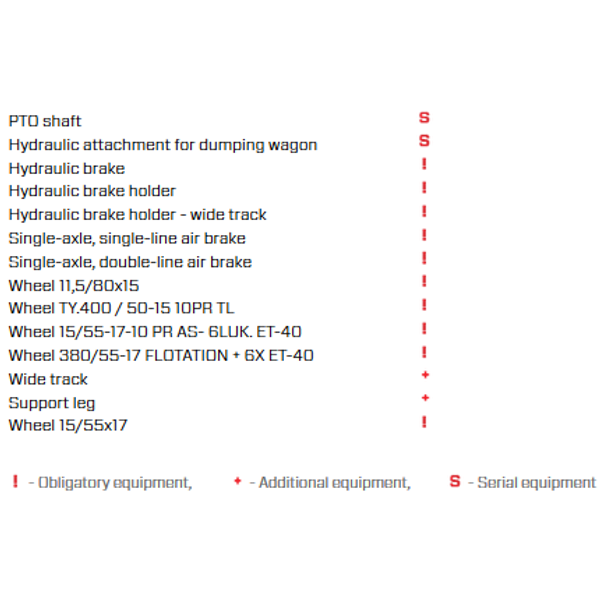

Equipment
