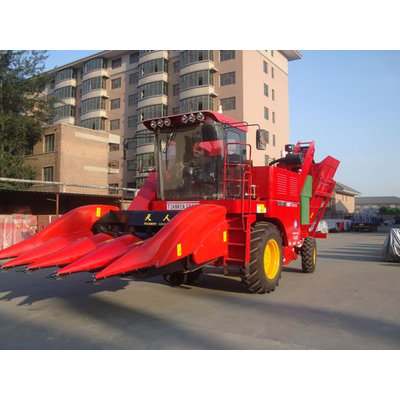

Tianren - Model TR9988 - Self-Propelled Corn Combine Harvester
From Corn Picker
Total Loss Rate: ≤ 3%. Trustworthy High Pressure Common Rail Diesel Engine (European emission standard III) from Weichai.
Engine with fireproof containment protection, Keep corn whisker away. Aluminum Alloy Gear Box. Clutch comes with Two friction plate for extended service life. Sheller concave with Hydraulic adjustment. Upgraded driving cab with more comfortability. Stalk cut into piece shorter than 10cm with Field Straw Chopper. Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability. Air Conditioner. Rustproof Finishment. Real time operation monitor system with LCD Panel.
-
Most popular related searches
Products Details
Main Advantage
Tianren Corn Corn Picker, Corn Harvester and Combine harvester are all equipped with TIANREN industry leading corn head
- Reliable and durable chassis design: equipped with quality gearbox, stepless speed adjustment; strengthened front axel, underframe, and main frame, more durable.
- Leading performance diesel engine: featuring huge power reserve and less fuel consumption.
- Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.
- Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.
- The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.
Hydraulic Adjustment
- Sheller concave with Hydraulic adjustment
- Relift mechanism to ensure the grain tank to be filled automatically
Comfortablity
- Upgraded driving cab with more comfortablity
- Real time operation monitor system with LCD Panel
Technical Data
- Number of rows 4
- Regular row spacing (mm) 650, 450/850
- workable row spacing range (mm) ±50
- Engine power (kw/hp) 128/175
- Size (mm) 9500*3300*3900
- Wheel base (mm) 2000
- Grain tank Volume (m³) 4.8
- Unloading height (mm) 2600
- Breakage rate ≤1%
- Total loss rate ≤3%
- Peeling rate ≥85%
- The minimum corn cob height from field(mm) 200
- Harvesting efficiency (acre/hour) 1.3-2.4
- NW (kg) 9300
- Stubble height (mm) ≤120
- Flail chopper Optional
- Stalk chopper Optional
- Air conditioner Optional
