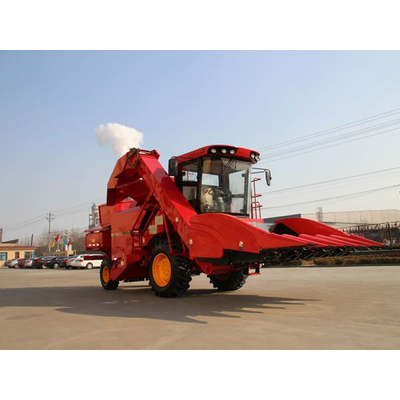

Tianren - Model TR9988-5A -Self-Propelled Corn Combine Harvester

FromShijiazhuang Tianren Agricultural Machinery Equipment Co., Ltd.

SHARE

Total Loss Rate: ≤ 3%. Trustworthy High Pressure Common Rail Diesel Engine (European emission standard III) from Weichai. Engine with fireproof containment protection, Keep corn whisker away. Aluminum Alloy Gear Box. Clutch comes with Two friction plate for extended service life. Sheller concave with Hydraulic adjustment. Upgraded driving cab with more comfortability. Stalk cut into piece shorter than 10cm with Field Straw Chopper. Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability. Air Conditioner. Rustproof Finishment. Real time operation monitor system with LCD Panel .

Most popular related searches

corn harvesting combine

harvesting combine

corn harvesting system

corn harvesting

harvesting system

self-propelled corn harvesting system

Main Advantage

Tianren Corn Corn Picker, Corn Harvester and Combine harvester are all equipped with TIANREN industry leading corn head
Reliable and durable chassis design: equipped with quality gearbox, stepless speed adjustment; strengthened front axel, underframe, and main frame, more durable.
Leading performance diesel engine: featuring huge power reserve and less fuel consumption.
Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.
Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.
The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.

GRAIN LIFTING MECHANISM

Easy Application to lift the kernel

Every kernel counts,
Although our harvester and corn head are gentle enough in progress,
There will still be a small amount of corn kernel left,
We want to help crop growers to save the kernel, as much as we can.
So, here is the perfect solution for you.
Select this option when ordering the harvester, and we will get this ready for you.

Function picking up, peeling,cutting stalks, unloading etc
Number of rows 5
Regular row spacing (mm) 505,530,650
workable row spacing range (mm) ±50
Engine power (kw/hp) 128/175
Size (mm) 9500*3300*3900
Wheel base (mm) 2000
Grain tank volume ( m³) 4.8
Unloading height (mm) 2600
Breakage rate ≤1%
Total loss rate ≤3%
Peeling rate ≥85%
The minimum corn cob height from field (mm) 200
Harvesting efficiency (acre/hour) 1.3-2.4
NW (kg) 9500
Stubble height (mm) ≤120
Flail chopper Optional
Stalk chopper Optional
Air conditioner Optional
