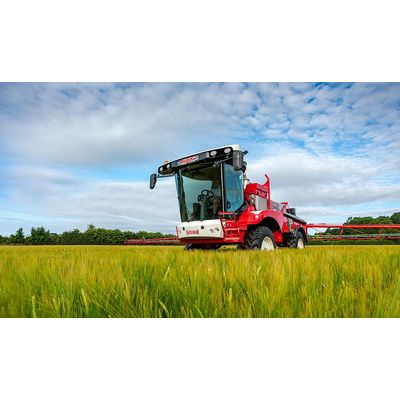

Bateman - Model RB26 - Self Propelled Crop Sprayer

DIMENSIONS (dependent on specification)

• Height: 3.2 m
• Wheel base: 3.3 m
• Width: 2.8 m
• Turning radius: 4.8 m
• Length: 7.0 m
• Weigh:t 6810 kg
• Ground clearance: 0.85 m
• Fuel capacity: 350 litres

STEERING

• Positive link 2/4-wheel steer, fully hydraulic

SUSPENSION

• Hydraulic fully active front and rear
• WHEEL TRACK
• Hydraulic adjustable axles with variable track width & optional display

ENGINE AND TRANSMISSION

• John Deere 185 hp 6-cylinder water cooled Turbo-charged diesel
• Fully Hydrostatic four wheel drive, variable from 0 up to 40 kph (depending on wheel size)
• Hydrostatic and dynamic braking. Parking brake manually operated or automatically applied when the engine is stopped

CAB

• Steel construction, with panoramic tinted glass
• Dynamic suspension
• Cladded and soundproofed
• CAT 4 carbon filtration
• Automatic climate control system
• DAB radio/DVD player with 6" LCD touch screen, including Bluetooth phone system and MP3/USB connectivity
• Roof mounted 360 degrees working lights, and warning beacon
• Wash wipe windscreen wiper 3 speeds including intermittent wipe
• Large extendable wing mirrors
• Fresh water hand/eye wash
• Pneumatically operated step
• Air suspension seat with fore and aft movement
• Raise, lower and tilting steering column
• External airline pickup point
• Rear view full colour camera

SPRAYER

• Tank, Stainless steel
• 3000 litres fully baffled, tank contents gauge with dry indicator. Built in clean water rinse tank
• Boom
• Bateman Contour 12/20/24 m `Gull Wing` fold
• Bateman Contractor Contour 12/18/20/24 m `Gull Wing` fold
• Bateman (V.G) Variable Geometry Contour up to 36 m
• V.G boom options
• 12/20/24 m
• 12/24/ to either 28-30-32 or 36 m
• Other variations are available
• Filling
• 4 cylinder 270 litre/min piston diaphragm pump
• Stainless steel chemical hopper, can wash/bowl rinse, with twin venturi
• Self-fill or bowser quick fill
• Controls
• (GPS enabled) Agleader Compass
• Electric tapping system giving in-cab control of tank and sprayline rinse
• Auto priming system
• Pneumatic diaphragm line valves
• Ramsay box
• Demounting
• Full set of demount legs and jacks

WHEELS

• Row crops
• 12,4/R38 (320/85 R38) or 14.9/R34 (380/85 R34)

CONTROLS

• Joystick command arm forward/reverse and sprayline controls
• Electro-hydraulic spray pump and boom controls

EXAMPLE OPTIONS

• Triplet nozzles with 3 sets of jets
• Twinline with mulit-jet options
• Spreader skid unit, mudguards and demount jacks
• Automatic section control
• Low ground pressure tyres
• Boom height control
• 400 litre/minute 6 cylinder spray pump
• Twin spray pumps
• Electric heated & controlled mirrors
• 2 & 3 speed wheel motors (6 ratios)
