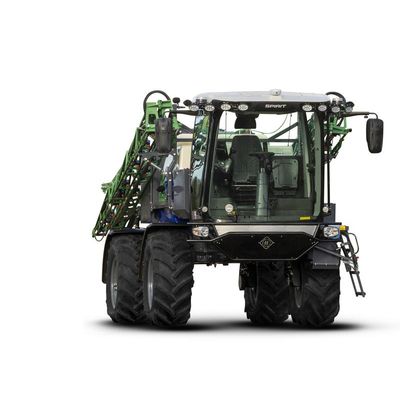

Spirit - Self-Propelled Sprayer
The Spirit has been a versatile and popular sprayer since it was introduced in 2013. Designed to be a simple to use, low weight self-propelled machine for a wide range of uses; offering a 3000ltr capacity tank and precision nozzle control to maximise productivity.
- Turning circle 6.7m
- Manually adjustable axle from 72” to 84”
- Individual Nozzle Control (INC) switch via GPS system
- Boom levelling
- Full boom recirculation
- Househam TMC controller
- Spacious Claas Jaguar X10 cab with Climate control and excellent visibility
- Spray tank capacity 3000 litres
- From 6000kg dry weight
- 13/24m or 14/28m twin-fold booms
- Economic and powerful Mercedes MTU 4R1000 Stage V 170hp engine (230hp also avialable)
- 50:50 weight distribution with front & rear oscillating axles for maximum traction
- Active Air Suspension
- Axle clearance from 0.9m (up to 1.1m available)
The power at the heart of the Spirit is the easy access Mercedes MTU 4R1000 Stage V 170hp engine, delivering a maximum speed of up to 40kph. Rear-mounted for optimal weight distribution and a quiet cab as well as compliance with all current legislative requirements, the engine is just one of the performance-enhancing features you’ll appreciate.
With a wide choice of row crops and low ground pressure tyres, the Spirit’s Househam-designed chassis combines light weight with the strength and reliability to cope with long days in the field.
90cm ground clearance comes as standard on the Spirit. But if you need extra height, the Spirit can be adapted to suit your needs. As well as clearing the crop, the low weight chassis – just 6000 kg dry weight – active air bag suspension system, and a rear mounted engine optimise weight distribution. In fact, the Spirit achieves a near perfect 50:50 weight distribution and a low centre of gravity.
A 200-litre high capacity fuel tank and a 250-litre GRP clean water tank ensure high endurance for extended working days.
