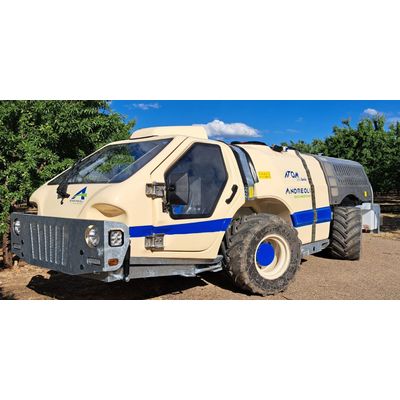

Andreoli Engineering - Model ATOM 2000-1000 -Self-Propelled Sprayers
ATOM is the range of self-propelled sprayers for the professional management of spraying operations. ATOM ensures high performances, total driver safety and very good driving comfort, even under very low canopy and in steep conditions.
ATOM main features are:
- Compact dimensions
- Very low profile (down to 138 cm cab included)
- Powerful blower system
- Cab with Category 4 top level protection
- Very good driving comfort
Thanks to its compact dimensions, maneuverability and powerful blower system, ATOM 2000 safely performs spraying operations at high speed.
ATOM is also available in the 1000 version, with tank capacity of 1000 litres.
- VM R754 EU6, 4 cylinders, turbo, intercooler, 80 kW@2300, Stage 5/Euro 6, DOC+SCR+AdBlue (ATOM 2000 narrow wheel track )
- FPT; model: F36; 4 cylinders, turbo, intercooler, common rail, rating: 90 kW @ 2200 rpm, Stage 5/Euro 6 compliant, DOC+SCR with AdBlue (ATOM 2000 large wheel track)
- VM, R754ISE5, 4 cylinders, turbo, intercooler, 55kW@2600 rpm, Stage 5/Euro 6, DOC+DPF.
- VM R754 EU6, 4 cylinders, turbo, intercooler, 80 kW@2300, Stage 5/Euro 6, DOC+SCR+AdBlue
Continuous hydrostatic transmission.
4 wheel drive.
4 wheel steer.
Heavy-duty mechanical axles.
Available Limited Slip on both axles.
Blower fan and chemicals pump engagement through electro-magnetic clutches.
AHSS steel (Advanced High Strength Steel).
Hot galvanisation.
ROPS protection structure.
Adjustable machine height.
Mechanical suspensions with leaf springs and shock absorbers on axles.
Cab pneumatic suspensions with airbags and shock absorbers.
Hydrostatic brake.
Hydraulic oil immerged discs service brake.
Hydraulic park brake.
Cab body in reinforced fiberglass.
Pressurized cab, Category 4 protection level.
Cab air filter Category 4, easy access to filter for maintenance.
Pneumatic seat.
Adjustable steer column.
Air conditioning, heating.
Manual A/C controls.
Optional full automatic A/C controls.
Cab is also available with top extension, which increases cab inside vertical room.
Higher seat position increases driving comfort.
Cab with top extension also has an extra back mirror to keep back nozzles under control.
Height of machine with cab top extension increases of +18 cm.
Joystick for forward/reverse and speed control.
Switches for nozzles controls directly on main joystick.
Electric pressure regulation with switch.
Digital display for tank level and working pressure.
7” color display for multiple cameras IR.
Digital display for spray rates parameters.
Computer for automatic spray rates management.
GPS guidance systems.
Interface system GPS/computer for automatic spray rates management.
Sonar system for automatic nozzles sections control and target detection.
Reinforced fiberglass tank with inside protective layer.
- Capacity ATOM 2000: 2000 litres.
- Capacity ATOM 1000: 1000 litres.
- Inside baffle anti-rolling.
- Flush tank.
- Hand wash tank.
Diaphragm pump, brass manifolds and heads.
Up to 260 liters/min, 50 bar (68 US gal/min, 725 PSI).
Possible spray rates low – medium – high: from 100 to 10000 l/ha (from 11 to 1100 gal/acre)
Double filtering system: suction filter + pressure in-line filters.
Double hydraulic tank agitation system, triple + double flow, for a perfect agitation of chemicals mixture.
Available front and rear nozzles manifolds.
2 or 4 independent nozzles sections.
- Double or triple no-drip nozzles.
- Long range jets.
- Adjustable cone nozzles.
- Anti-drift tips.
- Flood jets for use with fertilizers or for watering purposes.
VAC 896 system, all stainless steel.
Adjustable blades pitch and strong blades mounting.
Clean front suction, which avoids chemicals recirculation and leaves/debris suction.
Double back outlet, using 100% of fan surface to reach the top of vegetation.
Unique high efficiency guide vanes system to correct air direction.
Strong airflow with maximum power directed to the highest portion of vegetation.
Perfectly symmetric outflow air pattern and strong resistance against drift.
Top/bottom adjustable flaps.
