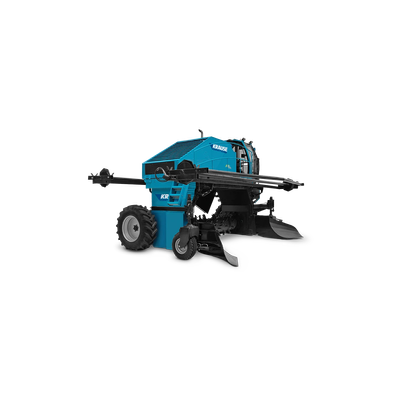

Zago - Model Krause V 9.40 -Self-Propelled Turner Mixer

SHARE
KRAUSE 9.40 self-propelled horizontal axis turner is designed for medium to large-scale plants for composting agricultural and biological waste or sewage sludge. The 9.40 self-propelled turner is a professional tool for handling heaps and organic matter for composting, stabilising manure or treating contaminated soil. Thanks to its special conformation, it allows easy and quick chopping of long fibres and breaking up of clumps or blocks of material for perfect mixing and rapid oxygenation of the whole mass, a fundamental condition to obtain quality compost.

Most popular related searches
self-propelled compost turner
self-propelled mixer
rubber track system
compost product
compost mixing
irrigation system
composting
composter
large-scale composting
manure composting
  • Version: Self-propelled
  • Turning capacity: ≅ 2.500 m³/h
  • Maximum pile height: 2.000 mm
  • Maximum pile width: 5.800 mm
  • Diesel engine power: 103 kW / 140 HP

KRAUSE V 9.30 self-propelled turner is available as a wheeled (standard) or tracked version.

Both variants have very compact working and transport dimensions, which makes them easy to use in different plants.

The rear-wheel drive and front steering system allow 360° rotation on the machine’s axis, optimising the surface area required in the plant.

Like all models in ZAGO’s KRAUSE series, the machine is equipped with a standard Tier 5 engine, but can also be supplied with a standard Tier 3 engine if required. You can choose between different diesel engine powers for different materials to be processed.

A large number of options are available: crawler, on-board irrigation system, automatic leaf coverage and uncovering system, spacious and comfortable driver’s cabs, remote control operation, etc.

Handling

KRAUSE 8.30 is characterised by a chassis with tyres, which is maintenance-free and provides good traction, even on unpaved surfaces.

Optionally available with rubber tracks.

The rear-wheel drive and front steering system allow 360° rotation on the machine’s axis, optimising the surface area required in the plant.

Wear-resistant rotor

The rotating rotor made of Hardox wear-resistant material is driven by V-belts, ensuring less loss of efficiency for the same performance.

Mechanical transmission

ZAGO’s unique mechanical drive translates into advantages that directly benefit the customer:

  • Fuel savings
  • Reduced emissions
  • Less hydraulic oil
  • Lower maintenance costs

The turner rotor is height-adjustable.

Ploughshares

Its ploughshares allow windrows to be placed side by side with little loss of space in between.

There is no need to leave a corridor between the stacks, resulting in better use of available space.
