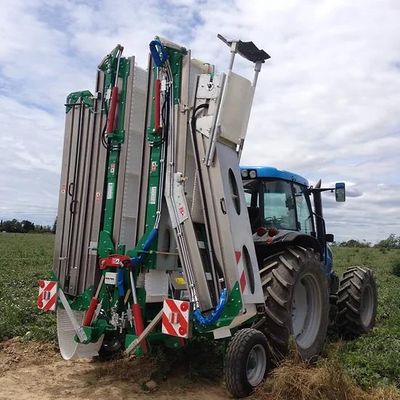

Delecroix - Model XXL 20 m -Semi-Mounted Harvesting Belt

This model has a useful length from 10 to 20 meters and folds up at the back of the tractor. The belt is equipped with a modular mesh band to guarantee the quality of the harvested product.

The Delecroix XXL harvesting belt will allow you to gain in productivity while improving the working conditions of the harvesters.

At Delecroix, our motto is to be able to offer you the solution that best suits your needs. This is why our harvesting belt is modular, adjusted to your working method.

• Chassis on 1 axle
• Dimensions folded machine: width 3.00 m, height 4.00 m (3.50 m in transport position)
• Monocoque aluminum boxes with 100 mm high edges
• Elevation by gooseneck on one side for transfer in the boxes of a follower plate
• Elevation at 2.20 m for 1 level of box on the plateau
• Polypropylene modular belt 400 mm wide; reinforced edge modules
• Cleats 75 mm high, 500 mm pitch
• Driven by 7 high-strength, double-tooth sprockets
• Hydraulic motorization with speed variator on hydroelectric distributor
• Fall support system to guarantee quality

• Elevation at 3.00 m for 2 levels of box on the plateau
• Not custom cleats
• Automatic working height maintenance system on the opposite side of the elevation
