Frumaco - Model OE4.4 - Shake & Catch Fruit-Harvester
This harvester is based on a principle of single system. The vibration and collection function is combined in one side machine next to the tree. In this type of machine a method of continuous harvest is used, i.e., trees are harvested continuously without pauses. For this purpose, the machine is equipped with a shaker which operates continuously.
A special electro-hydraulic mechanism controls the process. Thus, after this operation, fruits do not fall to the ground, as an umbrella over the lines of trees will help with the process.
From the side of the machine and from umbrella, fruits are obtained through a special sealing built on a central conveyor belt.
This is designed such that, despite the density function, is still providing a continuous harvest operation.

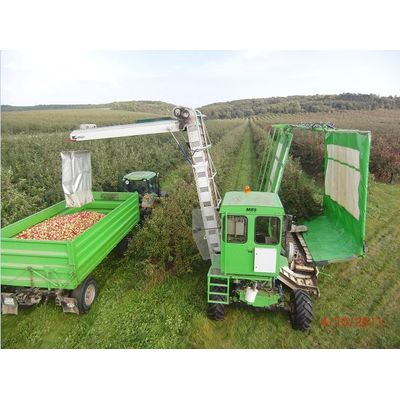

On the downstream conveyor, the elevator and the purification phase, fruits will be transported to an adjacent row powered container.
The harvester has a chassis with high and controlled lateral suspension level, in such a way that it is able to adapt to more difficult areas.
The operator can perform and supervise from cabin all machine functions.
All work processes of the machine are performed electro-hydraulically.
Modification of the collection during transport will also be electro-hydraulic and will only take about 2 minutes.
The harvester is authorized for road use.
TECHNICAL INFORMATION: www.frumaco.de Machine System:
Single Motor and machine system Self-propelled harvester Vehicle in parallel for the harvesting of the crops
Requirements fort he plantations
- Layout orchard:
- Row spacing from trunk to trunk > 5.0 m
- Tree distance from trunk to trunk > 1.8 m
- Trunk diameter 80 ….. 200 mm
- Free and clean trunk height > 0.75 m
- Tree height
- Crown width
