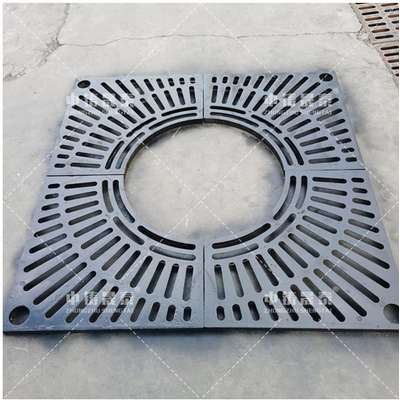

Shengtai - Model QT500-7 -Cast Iron Tree Grate

The cast iron tree grates produced by Cangzhou Shengtai Metal Products Co., Ltd. are made of ductile iron (QT500-7) and are designed in round or square shapes with a central tree hole. They are used for protecting and beautifying tree pools in urban streets, parks or squares. They have both drainage and pedestrian safety functions and have a general load-bearing capacity of A15-B125 (1.5-12.5 tons).

Notes:

• Material: Ductile iron (QT500-7), corrosion-resistant and high-strength, with optional spray paint or hot-dip galvanizing (GB/T 13912-2002) for rust resistance and aesthetics.
• Specification: Outer dimensions (square side length or round diameter), with central tree hole diameter designed for tree size, compliant with urban landscaping standards.
• Dimensions: Outer diameter/side length × tree hole diameter × thickness, with grid opening ratio of approximately 30-40% for drainage and ventilation.
• Weight: Theoretical values, subject to ±10% variation due to casting processes and surface treatment, calculated based on a density of 7.2 g/cm³.
• If you need customization, please contact customer service.

Cangzhou Shengtai Metal Products Co., Ltd. produces cast iron tree grates, also known as tree pit grates or tree guards. These are grid-like covers used to cover tree pits in urban greening. These grates are corrosion-resistant, lightweight, high-strength, easy to cut and install, age-resistant, flame-retardant, safe, customizable in color, economical, and highly designable.

They protect tree roots, preventing damage from pedestrians and vehicles, and reducing soil compaction. Their porous structure ensures smooth ingress of rainwater and air. They also prevent debris such as leaves and plastic bags from falling into the tree pits, keeping the ground clean. Through their diverse materials and designs, they enhance the landscape.
