Delecroix - Side Harvesting Belt

SHARE

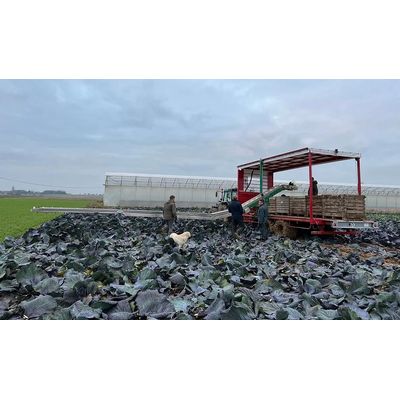

Range of harvesting belts adapted to the needs of the harvester, folding along a vegetable trailer.

Most popular related searches
harvesting conveyor
harvesting system
vegetable trailer
harvesting conveyor belt
harvesting vehicle
vegetable harvesting system

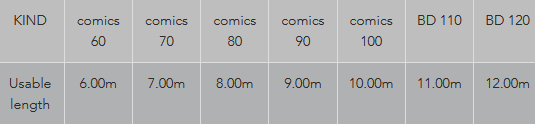

  • Up to 11.00m useful length
  • Optimized budget and simplified harvest
  • Complementary to the Delecroix or La Bretonne trailer
  • Versatile harvesting belt, with a large capacity to increase productivity
  • Quickly folding fixed mat along the trailer
  • Useful length excluding trailer: 6.00 m
  • Cap 0.75 m (landing area)
  • Overall width: 480 mm
  • Starting frame in folded and profiled sheet metal
  • Standard exterior frame in exterior mounting, i.e. 100% of the floor available (mounting in the outer rail of the floor and rail in the roof)
  • Monocoque aluminum housings, with folding end (manual)
  • Driven by 4 double-tooth nylon sprockets
  • 400 mm wide industrial polypropylene belt
  • Cleats 75 mm high, 380 mm pitch
  • Hydraulic motorization
  • Speed variator on distributor
  • Hydraulic lifting by cylinder
  • Stopping of the conveyor by photo-electric detector
  • Removable model (hydraulic and electric quick couplings)
  • Second complete chassis (outdoor model)
  • (mounting in outer rail of the floor and rail in the roof)
  • Removal aid tool (on wheels)
  • System for the road: removable axle and removable end hitch
  • System for the road: removable axle and removable end hitch
  • System for 2 mats
  • Reduction for model with adaptable chassis on the customer`s platform: 100% external assembly on the platform edge
  • Chassis with double guide system suitable for added guide structure (welded ladder type structure)
  • Supply of the guide structure to be added (ladder type structure to be welded)
  • 3 box packing table (mounting in outer rail of the floor and rail in the roof)
  • Surcharge for packing table 4 boxes
  • Supplement for a cap of 1.00 m length
  • Supplement for a 1.50 m long cap
  • With support reinforcement
  • Automatic working height corrector with use of the cylinders of the 1st aluminum box (Inclinometer + Hydraulic block + Servo)
  • Polypropylene belt with cleats every 300 mm
  • Polypropylene belt with cleats every 250 mm
  • Polypropylene belt with cleats at 250 mm pitch with height H75/50/50
  • Adding containment edges
  • Storage kit for empty boxes above the carpet, and full boxes on the side - For 7.00 m model
  • Storage kit for empty boxes above the carpet, and full boxes on the side - For 8 m model
  • Storage kit for empty boxes above the carpet, and full boxes on the side - For 9 m model
  • Storage kit for empty boxes above the carpet, and full boxes on the side - For 10 m model
  • Storage kit for empty boxes above the carpet, and solid boxes on the side - For 11 m model
  • Storage kit for empty boxes above the carpet, and full boxes on the side - For 12 m model
  • Double hydraulic hose
