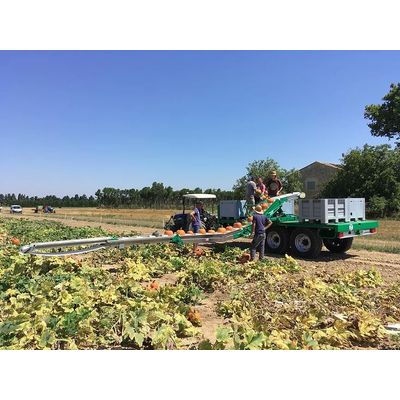

Delecroix - Side Harvesting Belt on Existing Trailer

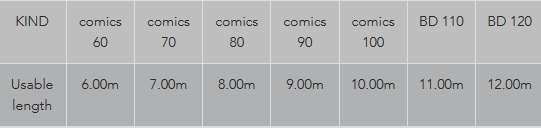

This model has a useful length from 6 to 12 meters and folds down along the trailer (adapted to the road gauge, i.e. 2.50 meters wide including the trailer). The belt is equipped with a modular mesh band to guarantee the quality of the harvested product.

The side harvesting belt is the most economical harvesting solution we offer.

You have a trailer and wish to adapt a harvesting belt on it? Our design office will study the project!

It will allow you to gain in productivity while improving the working conditions of the harvesters.

At Delecroix, our motto is to be able to offer you the most adapted solution to your needs. This is why our harvesting belt is modular, adjusted to your working method.

• Carpet attached to the platform: external carpet attachment  with rollers thanks to the installation of rails allowing the horizontal movement of the belt
• Aluminum monocoque boxes with 0.75 m cap (reception area)
• Polypropylene modular belt 400 mm wide with edge modules  reinforced
• Cleats 75 mm high, 380 mm pitch
• Driven by 4 double tooth sprockets
• Carpet lifting with hydraulic cylinder
• Hydraulic motorization with speed variator on distributor
• Stopping of the conveyor by photo-electric detector

• Removable model (hydraulic and electric quick couplings) Removal aid tool (on wheels)
• System for the road: removable axle and removable end hitch
• System for the road: removable axle and removable end hitch System for 2 mats
• 3 box packing table (mounting in outer rail of the floor and rail in the roof)
• Surcharge for packing table 4 cases
• Supplement for a cap of 1.00 m length
• Supplement for a 1.50 m long cap With support reinforcement
• Automatic working height corrector with use of the cylinders of the 1st aluminum box (Inclinometer + Hydraulic block + Servo)
• Polypropylene belt with cleats every 300 mm
• Polypropylene belt with cleats every 250 mm
• Polypropylene belt with cleats at 250 mm pitch with height H75/50/50
• Adding containment edges
• Storage kit for empty boxes above the carpet, and full boxes on the side - For 7.00 m model
• Storage kit for empty boxes above the carpet, and full boxes on the side - For 8 m model
• Storage kit for empty boxes above the carpet, and full boxes on the side - For 9 m model
• Storage kit for empty boxes above the carpet, and full boxes on the side - For 10 m model
• Storage kit for empty boxes above the carpet, and solid boxes on the side - For 11 m model
• Storage kit for empty boxes above the carpet, and full boxes on the side - For 12 m model
• Double hydraulic hose
