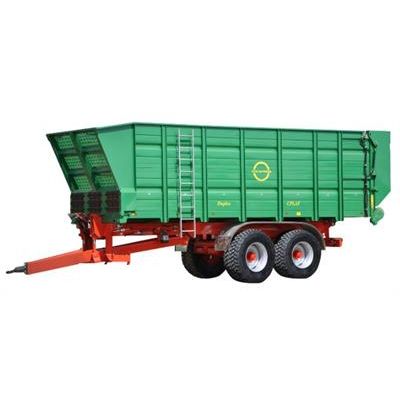

Juscafresa - Model Duplex DFRJ -Silage Interchangeable Chasis Agricultural Trailer
FromJuscafresa S.A
Silage agricultural trailers Juscafresa with independent and interchangeable chassis. Destined for large agriculture works / farms that want to have more than one machine with a single independent and interchangeable chassis. Designed to get mounted with different type of bodywork such as to transport silage, manure, tippers or platforms. Stands out for its unloading by chains with the option of automatic and synchronized unloading to obtain a trailer emptying in a single pass. The reliable hydraulic suspension increased the stability, a reduce in the same time the tractor drag and reduce the compaction. Standard equipped with: 4 chains 80/12X manufactured with 20 Mn 4 + S 355 JR or 80/18W manufactured with 27 Mn Cr B5-2 + HARDOX 450. Drawbar with hydraulic elevation and descent, variable in height.
Most popular related searches
agriculture trailer
silage
silage manure
silage trailer
tractor
agriculture silage
manure silage
fodder
silage transport
manure transport
BASIC FEATURES
- Box length mm 7440
- Box width mm 2400
- Side height mm 2040
- Capacity m3 36,50
HYDRAULIC KIT AND CONTROLS
- Direct hydraulic attack to the tractor used by the tractor levers
- Doble acumulador de baja y alta presión para suspensión de la lanza
- Doble acumulador de baja y alta presión para suspensión de los ejes
DRAG SYSTEM
- 4 chains 80/12X manufactured with 20 Mn 4 + S 355 JR
- Independents tensors
- Hydraulic advance chains with double reducer 1/16,4
- Pressure gauge to indicate the work pression of the motors
BOX
- Grille to check inside
- Lateral ladder access
- Synthetic sash to close the hydraulic back cover
- Fodder hydraulic back cover compass type
CHASSIS AND BODYWORK
- Bodywork elevation cylinders for exchange
- Circulation lights installation
- Rotary beacon for the danger signalling
- Drawbar with hydraulic elevation and descent, variable in height
- Double mechanic jack-stand
- Hydraulic + mechanical break
- Revolving ring towing eye 208284 Scharmüller ISO 20019
AXLE
- 1st ESAS12: Front sidra straight axle, suspension with simple effect cylinder, 2000 track, 10 bolts, brakes 400x120 2nd ESAD12: Back sidra self-steering axle, suspension with simple effect cylinder, 2000 track, 10 bolts, brakes 400x120
OPTIONAL EQUIPMENT
DRAG SYSTEM
- 4 chains 80/18W manufactured with 27 Mn Cr B5-2 + HARDOX 450
CHASSIS AND BODYWORK
- 2 back headlights to improve the visibility
- Tool box
- Water tank
- Pneumatic break with block acts
- Pneumatic break + hydraulic with block acts
- Fixed ring towing eye 208092 Scharmüller ISO 20019
- Ball towing eye 207909 Scharmüller ISO 24347
AXLE
- 1st ESAS12: Front sidra straight axle, suspension with simple effect cylinder, 2000 track, 10 bolts, brakes 400x120 2nd ESADF12: Back sidra forced steering axle, suspension with simple effect cylinder, 2000 track, 10 bolts, brakes 400x120. Interface for articulated steering device according to norm ISO 26402.
TYRES
- Wheels (4) 560/60R22.5 (165D) AGRITERRA 02 MITAS Diameter: 1247mm Section: 567mm Load at 25km/h: 8137kg/wheel Load at 40km/h: 7004kg/wheel
- Wheels (4) 560/60R22.5 (161D) AR-02 MITAS Diameter: 1248mm Section: 546mm Load at 25km/h: 7307kg/wheel Load at 40km/h: 6290kg/wheel
- Wheels (4) 560/60R22.5 (161D) CARGO X BIB MICHELIN Diameter: 1251mm Section: 570mm Load at 25km/h: 7310kg/wheel Load at 40km/h: 6290kg/wheel
- Wheels (4) 560/60R22.5 (161D) DT-182 UN DNEPROSHINA Diameter: 1244mm Section: 543mm Load at 25km/h: 7307kg/wheel Load at 40km/h: 6290kg/wheel
- Wheels (4) 560/60R22.5 (161D) RIDEMAX FL693 BKT Diameter: 1244mm Section: 543mm Load at 25km/h: 7725kg/wheel Load at 40km/h: 6700kg/wheel
- Wheels (4) 560/60R22.5 (164D) 885 ALLIANCE Diameter: 1230mm Section: 555mm Load at 25km/h: 7900kg/wheel Load at 40km/h: 6800kg/wheel
- Wheels (4) 560/60R22.5 (172A8) FL630 PLUS BKT Diameter: 1244mm Section: 543mm Load at 25km/h: 7310kg/wheel Load at 40km/h: 6300kg/wheel
- Wheels (4) 580/65R22.5 (166D) 380 ALLIANCE Diameter: 1318mm Section: 585mm Load at 25km/h: 8370kg/wheel Load at 40km/h: 7210kg/wheel
- Wheels (4) 580/65R22.5 (166E) RIDEMAX FL 693M BKT Diameter: 1326mm Section: 577mm Load at 25km/h: 8855kg/wheel Load at 40km/h: 7685kg/wheel
- Wheels (4) 620/55R26.5 (166D) 381 ALLIANCE Diameter: 1356mm Section: 612mm Load at 25km/h: 8370kg/wheel Load at 40km/h: 7210kg/wheel
- Wheels (4) 650/50R22.5 (163E) 380 ALLIANCE Diameter: 1235mm Section: 650mm Load at 25km/h: 8390kg/wheel Load at 40km/h: 7070kg/wheel
- Wheels (4) 710/50R26.5 (170D) 381 ALLIANCE Diameter: 1360mm Section: 710mm Load at 25km/h: 9480kg/wheel Load at 40km/h: 8160kg/wheel
- Wheels (4) 710/50R26.5 (170D) AGRITERRA 02 MITAS Diameter: 1388mm Section: 737mm Load at 25km/h: 9480kg/wheel Load at 40km/h: 8160kg/wheel
- Wheels (4) 710/50R26.5 (170D) CARGO X BIB MICHELIN Diameter: 1405mm Section: 732mm Load at 25km/h: 9480kg/wheel Load at 40km/h: 8160kg/wheel
- Wheels (4) 710/50R26.5 (170D) FL630 BKT Diameter: 1383mm Section: 687mm Load at 25km/h: 9480kg/wheel Load at 40km/h: 8250kg/wheel
- Wheels (4) 710/50R26.5 (170D) RIDEMAX FL693M BKT Diameter: - Section: - Load at 25km/h: - kg/wheel Load at 40km/h: - kg/wheel
- Wheels (4) 750/45R26.5 (170D) DN-112 OR DNEPROSHINA Diameter: 1348mm Section: 754mm Load at 25km/h: 9480kg/wheel Load at 40km/h: 8160kg/wheel
- Wheels (4) 750/45R26.5 (170E) 380 ALLIANCE Diameter: 1360mm Section: 750mm Load at 25km/h: 10330kg/wheel Load at 40km/h: 8700kg/wheel
