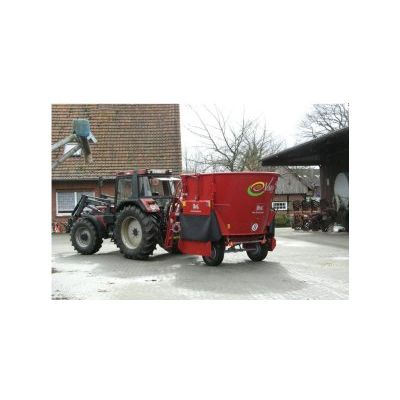

V-MIX Plus - Model 6.5-18 - Single Auger Mixer Wagon
This high-quality mixer wagon is available as a single-auger mixer with sizes between 6.5 and 18 m³. The V-MIX Plus 6.5 - 18 is distinguished by its ability to provide thorough mixing and exact metering of the fodder. This indefatigable mixer wagon combines excellent volume utilization with superior mixing capacity. Just like all our other models, this mixer wagon offers innumerable variation options thanks to a host of accessories, which lets you benefit from feeding equipment that is the perfect fit for your business.
Among others, this mixer wagon includes the following standard features:
- welded-on anti-overflow ring
- Inspection window
- Power mixing auger
- hydraulic parking brake
Everything at a glance!
- capacity: 6.5 - 1 8 m3
- more than a 1,000 possible
- combinations
- smooth mixing process
- exact and homogeneous mixing
- excellent volume utilization
Power mixing auger (standard)
The power mixing auger is the heart of the V-MIX Plus. It sets itself apart by its gentle and smooth mixing process. The power mixing auger owes its efficiency to the adjustable knives on the mixing auger flights, the Hardox mounting rails at the beginning of the flight and on the discharge arm as well as the slim design of the body. Our 35 years of experience in manufacturing vertical mixing augers shows in every detail!
Welded-on anti-spill ring (standard)
The V-MIX Plus comes standard with a welded-on anti-spill ring. The anti-spill ring prevents the fodder from spilling over the edge of the container during mixing and while you are opening bales. In addition, the design of the anti-spill ring adds tremendous extra stability to the mixing hopper.
Consistent discharge
BvL`s patented EDS system (Exact Dosing System) provides for an exceptionally consistent discharge of the fodder - even without a conveyor belt. The fodder can be discharged simultaneously on both sides through the two discharge openings on the side. The patented rubber bellows on the EDS doors prevent your animals from reaching the side doors, thereby minimizing their risk of sustaining injuries on their head and muzzle.
Electric control
Convenience at the push of a button. The V-MIX Plus can be equipped with a reliable and robust electric control that provides for convenient operation. This makes controlling the mixer wagon as easy as can be. Simply hang it up in the tractor cab, and you are good to go …
More than 1000 variants –
The right kind of machine for every application – no need to compromise: Possessing more than 35 years of experience in constructing mixer wagons and making "Made in Germany" products of the highest quality, BvL is able to manufacture machines that fit your individual needs best thanks to our intelligent and state-of-the-art variant production.
Robust high-capacity conveyor belt
BvL conveyor belts shine during daily and professional use thanks to their rubber belt that has a thickness of 6 mm and sports a double reinforced textile rubber lining. The two large deflection rollers are designed as cage rollers and ensure non-slip operation even in adverse weather conditions. The powerful drive of the conveyor belt is made up of only one hydraulic motor.
- EDS discharge on the side
- EDS discharge at the rear in the curvature
- EDS discharge at the center rear
- Cross conveyor belt at the front or the back
- Cross conveyor belt laterally movable
- Elevator
