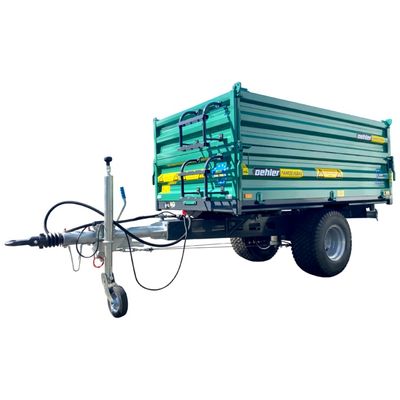

Oehler - Model OL EDK 20 -Single-Axle 3-Way Tipping Trailer

Standard equipment

• Torsion resistant chassis, solid C-frame, closed
• Perfectly tight structure: 2.5 mm wall thickness, basic sideboards with high-quality sideboard locks from Hestal & Bernhofer
• Hinged sideboards + rear sideboard
• Torsion resistant bridge frame with longitudinal and cross profile
• Flail-axle: suitable for 25 km/h
• Foldable carrying wheel
• 12 volt lighting system, rear power socket
• Complete vehicle (frame, platform, sideboards) cleaned in 9 immersion baths, degreased and then coated inside + outside with ACC powder and main paint burned in at 180 degrees
• Precision ball tilt bearing with crossover safety fuse
• Oversized tilt cylinder, 3-stages, 800 mm stroke, cardan bearing with hard chrome plated piston rod and stroke limitation valve

• Permitted total weight: 2,0 t
• Platform - inner dimension: 2290x1200x400 mm
• Basic tires: 26x12,0 LG-306 8 PR
• Tare weight approx.: 500 kg
• Basic sideboard: 400 mm
• Platform height approx.: 760 mm
• Floor platform: 3 mm continuous, unwelded
• Max axle load capacity: 2.000 kg
• Tipping cylinder stages: 3
• Cylinder stroke length: 800 mm
• Cylinder stages Ø mm: 60-75-90
• Max. operating pressure: 200 bar
• Oil quantity needed: 3,6 l
• Brake: Overrun-reversing automatic (Flail)
• Electrical system: 12 volt lighting system, rear power socket
• Additional: Chocks
• Brand: Man
