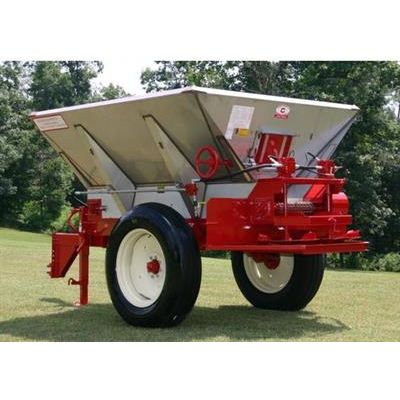

ChandlerModel 9-PT-FT - Single-Axle High Clearance Broadcast Spreader

SHARE

The 9-PT is a single-axle high clearance broadcast spreader designed with the post-emergent field in mind. Spread throughout the season as the 9-PT is built with High Clearance options so you don’t harm those adolescent plants. Twin 24” Spinner Dishes and engineered Flow Divider broadcast with the accuracy and dependability that our customers have grown accustomed to and expect. Built with a single 12,000# rigid axle and superior gusseted hopper design, the 9-PT is no exception to the Chandler standard of durability. The efficiency, economic maintenance and performance make the 9-PT the preferred spreader throughout the ag industry.

Most popular related searches
  • Hopper Width 96” (8’)
  • Hopper Length 120” (10’)
  • Total Length of Spreader 216” (18’)
  • Capacity 185 Cu. Ft (struck Level) (6 Ton Fertilizer Capacity based on 65# material)
  • Hopper Loading Height 89” (7’ 4”) (Mounted on 11.25 x 28 Tires)
  • Chain Type 16” 304L Stainless Steel Chain
  • Tire/Wheel 11.25 x 28 Row Crop Tires (standard clearance 26”)
  • Hitch Pin – Clevis Type
  • Jack 12000# Jack
  • Axle 12,000# Rigid Axle
  • Hopper Options
    • Mild Steel, 409 Stainless, 304 Stainless
    • 52 Degree Sloped Sides
    • Inverted “V”
    • Extension Brackets and Boards
    • Sight tube
  • Spinner Options
    • Hydraulic Motor-powered Spinners (requires 16 GPM from Tractor)
    • 304 Stainless Steel Spinners Dishes and Blades
    • Stainless Steel Spinner Assembly
    • Raven Spinner Speed Control (Requires Capable Control System)
    • Constant Velocity PTO Shaft
  • Conveyor Options
    • Steel Cleated Ground Wheel
    • Plug to Tractor Ground Wheel Engagement
    • Extra-low Rate Sprocket Kit (third pair)
    • Stainless Roller Chain
    • Plug to Tractor Hydraulic Drive
    • Self-contained PTO to Pump Hydraulic Drive
    • 16, 20 and 24” Mesh Chain Options
  • Frame Options
    • 11.25 x 28 Row Crop Tires
    • Adjustable track (30” – 36” Rows by Flipping Tires)
    • 30” Mid Clearance
    • 40 “ High Clearance
    • 10 Lug Heavy Duty Hubs (15,000# Rating)
    • 18.4 x 26 AWT Row Crop Tires
    • Bull Pull CAT-4 Hitch
    • Pintle Hitch
  • Tarp Options
    • Fitted Tarp
    • Agri-Cover SRT-2 Roll Tarp System
  • Electronics
    • Rate Control
    • Variable Rate Capability
    • ISO Ready
    • Scale System
  • 120” Long x 96” Wide Hopper
  • 185 Cubic Ft. Capacity
  • Quick Change Sprockets for High/Low Rates (75 to 4000 lb/acre)
  • Full Ground Wheel Drive, PTO Drive or Tractor-Supplied Hydraulics
  • Heavy-Duty 12,000# Rigid Axle and Hubs
  • 304L Stainless Steel Mesh Chain
  • High-Clearance Option for post-emergent dressing
