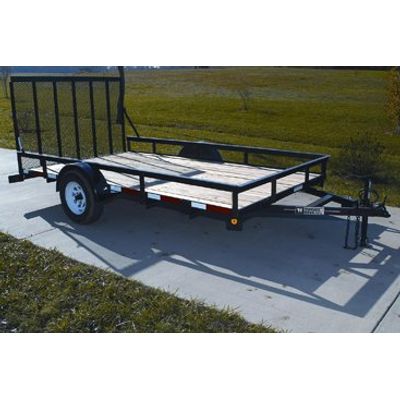

Hudson Bros. - Model Pro Series HSLG 12 - 3500 Lb. Capacity -Single Axle Landscape Trailer
Standard Specifications GVWR: 5,010 lbs. Empty Weight:1,510 lbs. Maximum Payload: 3,500lbs. w/adequate hitch load Overall Length: 17` Deck Length: 12` Overall Width: 96` Deck Width: 79` Deck Height: 19 1/2` Loading Ramp: 4` Spring Assisted Tail Gate.
Hitch: 2" Ball Coupler
Hitch Height: 18"
Cargo Rail: 2"x3"x1/8" Angle 10 1/2" High
Axles: (1) 3,500 lb. Dexter w/Brakes
Suspension: Multi-Leaf Spring
Brakes: Electric/10" x 2 1/4" w/break-a-way
Wheels: 14" x 5" White Spoke 5-bolt
Tires: ST205/75R14" 6-PR
Jack Capacity: 5,000 lb. w/Foot
Main Frame: 3" x 3" x 3/16" Angle @4.9#
Crossmembers: 2" x 3" x 3/16" Angle @ 3.07#
Decking: 2" x 8" Treated Pine
Tie Downs: 4" Stake Pockets
Lights: DOT LED Sealed Rubber-Mounted
Colors: Yellow or Black
ASP - Additional Stake Pockets
6WADL - Extra Deck Length (2` Maximum)
HSB - Hydraulic Surge Brakes (2" coupler)
6W102 - 102" Wide w/84" Deck Width
4`FACR - 4` Fully Adjustable Cleated Ramps
HSB - Hydraulic Surge Brakes (2-5/16" coupler)
TC - Trickle Charger for Break-A-Way
STR - Spare Tire & Rim
STM - Spare Tire Mount
CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
