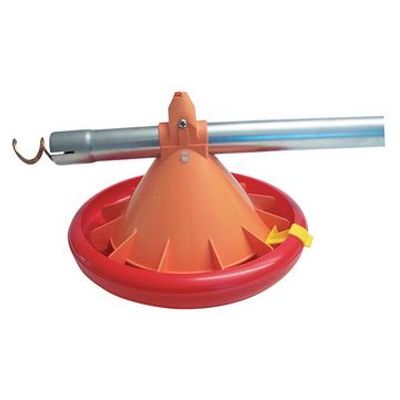

Ultra - Model 2002 -Single Feeder System
Allows feeding a larger number of broilers through the use of a single feeder thanks to a larger, 36 cm feeder pan. (65-80 broiler/feeder). The concealed threaded feed adjustment system underneath the feeder pan allows easy, quick and accurate feed level setting. The feeder lock allows the feed level to be kept at the required level. The patented single-bolt and nut pipe clamp system allows very easy assembly, disassembly and cleaning.
- Maximum Line Length 150 meters
- Feeder Line Motor Power 0,75 KW
- Recommended Number of Birds Per Feeder 50 - 75 Broilers
- Feeder Range 75 cm or 100 cm Feeder
- Pan Height 65 mm (6,5 cm)
- Feeder Pan Width 36 mm (3,6 cm)
- Feed Holding Capacity 90kg
- Feed Storage Material Galvanised Sheet Metal
- Feeder Pipe Diameter Ø 45 mm (4,5 cm)
- Feeder Pipe Wall Thickness 1,20 mm
- Feeder Spring Diameter Ø 39 mm (3,9 cm)
- Lifting System Carrier Roller Range 3 meters
- Main Rope Thickness 6 mm Stainless Steel
Feed Hopper
This is the unit that allows the feed to be kept in the poultry house ready for distribution. It may have a capacity between 60 to 90 kg.
Feeder Line Motor Group
This is the system that enables the feed to be supplied in equal amounts to all feed pans along the line, automatically replenishing the feed on the pan as it is consumed. The motor power allows effective operation up to 150 metres.
Midline Shut-off
This unit allows the use of feed lines at reduced capacity for the purpose of saving power in long poultry houses.
