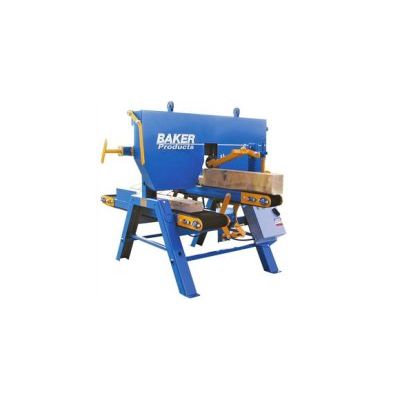

Baker - Model A -Single Head Band Resaw

SHARE

Named for the shape of its frame, the Baker “A” Band Resaw is great for all of your resawing needs. You`ll cut at speeds not possible on many band resaws costing much more. Accuracy, dependability, economy, simplicity, versatility, and low maintenance are combined into one affordable resaw.  Resaw everything on it, or use it for short runs. Use it to cut boards or cants, or reclaim slabs. The Baker “A” fits in a 3/4 ton short-bed pick-up, so load it up and take it with you. Accuracy, dependability, economy, simplicity, versatility, and low maintenance are combined into one affordable resaw. That is why the Baker “A” is the most popular band resaw in the world.

Most popular related searches
band resaw
  1. 15-HP electric motor standard
  2. 6” wide hydraulically-power driven conveyor with roughtop belting
  3. 28” diameter, CNC-machined, dynamically-balanced, solid, all-steel band wheels
  4. 13’-2”x1”x0.035” or 13’-2”x1¼”x0.035” hardback band blades
  5. Baker’s Exclusive Low-Profile Flat Plate Guide System with Rear Guide Wheel
  6. Hydraulic variable feed speed control, powered by main drive motor
  7. Spring blade tensioning
  8. Compact size (7’ square) fits into almost any size of operation
  9. Heavy-duty construction
  10. Simple to operate and maintain
  11. Extra-wide models available
  12. Many options available

Machine Dimensions
Height: 68 in. (1.73 m)
Length: 80 in. (2 m)
Width: 84 in. (2.13 m)

Machine Weight:
Approx. 1,750 lbs. (794 kg)

Capacities:
Feed Speed: Fully variable, 0-120 fpm (0-36.5 mpm)
Cutting Height: 1/4"-6" (6 mm - 152mm)
Material Length: Unlimited / Continuous Feed

Material Sizes:
7 in. x 7 in. (178 mm x 178 mm) or 10 in. x 4 in. (254 mm x 102 mm) above the blade with conveyor set at 0

  1. Infeed and Outfeed Turnarounds
  2. Powered Hold-Over Wheels
  3. Powered Hold-Down Wheels
  4. Simple Slide Return System
  5. 24-HP gasoline engine
  6. Rear non-powered hold-down
  7. Diagonal cut attachment
  8. 20-HP TEFC motor on
  9. Shingle belt
  10. Material Handling Conveyor
  11. Air Tensioning
