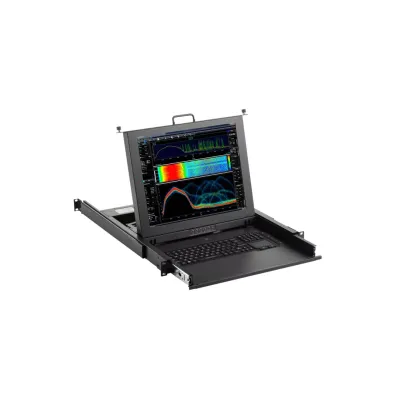

ACME Portable - Model SMK 920 -Single-Rail Rackmount Monitor Keyboard
Acme's SMK Family features a single-rail rackmount monitor keyboard designed to offer a compact yet efficient solution for integrating more computing power in confined spaces. The SMK models, including the SMK 920, utilize a 1U unit configuration to combine a high-resolution display with an integrated keyboard and pointing device. This setup is ideal for environments with stringent space limitations. It's equipped with analog-to-digital conversion and compatibility with standard VGA graphics. Built primarily for space-constrained applications, the SMK has a durable slide rail for installation in 19-inch racks, allowing it to be easily mounted alongside other critical components. Options for customization and configuration are available to meet specific technical requirements, alongside specialized features like military-grade connectors and various compliance levels to meet rigorous standards. The SMK Family exemplifies an adaptable, compact solution, making it suitable for diverse technical environments.The integration of data and video, and voice communication in computers and the subsequent technological advances have spawn many sophisticated CTI applications that have become accessible and affordable to the small and mid-sized business. The increasing CTI applications coupled with the growing demand for corresponding hardware and systems have created a dilemma: How does one pack the growing number of equipment into an existing space?
Acme's 1U slim industrial monitor keyboard, the SMK, is the solution for compacting more computing power into limited space. This revolutionary monitor keyboard combines a spectacular display coupled with a keyboard with built-in pointing device in a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation of the SMK leaves ample space for other critical components. With built-in analog-to-digital conversion board, the SMK can be connected to any standard VGA graphics card for immediate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19" rack mount cabinet.
- Display: 17" or 19", 5:4 Display at 1280 x 1024 Resolution
- Brightness: 300 nits
- Contrast Ratio: 500:1
- Viewing Angle: 170° (H) x 160° (V)
- Color: 16.2M Colors
- Backlight MTBF: 50,000 Hours under 25±5°C
- Ports: D-Sub 15 pin single-port KVM
- Height: 1U - 1.73" (44mm)
- Width: 17.42" (442.5mm)
- Depth: 19.68" (500mm)
- Weight: ~26.5 lbs (12kg)
- Power Supply: 60W, 100-240VAC, 50/60Hz
- Keyboard & Mouse: 105-key cherry switch keyboard with touchpad
- Touch Option: N/A
- Customization: Military connectors, custom I/O, zone 1/2/3, TEMPEST SDIP-27 level A/B/C, and more.
