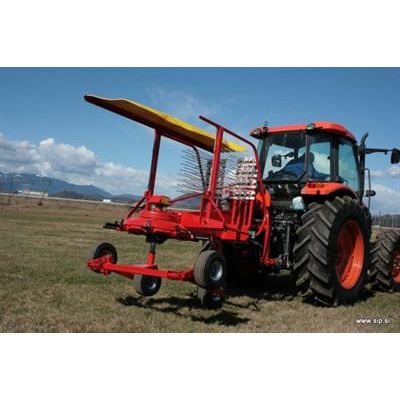

SIP - Model 300|8 ALP -Single Rotor Alpine Rotary Rake
The single-rotor rakes, with their lightweight and robust design, ensure smooth and even raking on very steep terrain and slopes.
Most popular related searches
The jockey wheel enables step-by-step tracking of the ground and thus even more efficient work on varied terrain without damaging the spring tines and holders. It ensures that the working height is always set correctly, thus preventing the spring tines from scratching the ground. Therefore, a clean swath is guaranteed.
The working height of the spring tines is adjustable, so the turf remains undamaged during raking. The swath is clean and free of soil and sand.
The swath width is set according to the quantity of the forage and the working width of the pick-up device behind the rake.
- Ball bearings on the connecting rod of the spring arm holders, traveling inside the cam track.
- Gear pair with a large module for easier power transmission.
- Robust gear housing.
- The double bearing of the vertical rotor shaft.
- Cam track is made of ductile iron.
- Minimal maintenance and long service life.
- Working width (m) 3,00
- Swath width (m) 0,50 - 0,80
- No. of tine arms per rotor (machine) 8
- No. of spring tines per arm 3
- Rotor diameter (m) 2,60
- PTO rotation speed (rpm) 540
- Recommended PTO rotation speed (rpm) 350 - 450
- Weight (kg) 338
- Required tractor power (kW/HP) 13
- Capacity (ha/h) 2,50
- Working height adjustment mechanical
- Safety clutch (Nm) 600
- Machine width (m) 2,79
- Transport width (m) 1,44
- Machine height (m) 1,22
- Transport lenght (m) 3,00
- Tyre size - rotors 15x6,00
