Husmann - Model HL I 1230 - Single-Shaft Wood Crusher Machine

Especially for general, bulky, mixed construction waste, green waste and also wood waste. The feeding material is fed into the hopper, which simultaneously feeds the slowly rotating crushing shaft.

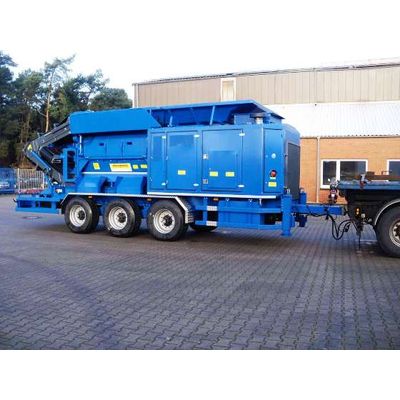

The designation »HL I« is used for the Single-Shaft Crusher. Accordingly, the term »HL II« designates the twin-shaft machines  All crushing machines are offered on a steel profile construction with hook-lift system. Even versions with crawler track, a three-axle trailer chassis or static machines on steel supports are also used.

The Crusher of the HL series was constructed as a pre-crusher for timber, pallet wood, household waste, bulky waste, industrial waste, green waste and roots. Long-term experience with the production of comminution machines at Husmann led to this highly universal and economical crushing machine.

In order to transport the machine, the transport belt can be folded in. The discharge belt is part of the basic equipment as well as the oil tank heating and monitoring devices for the transport belt, oil temperature and oil circuit.

The slow-speed Single-Shaft Crusher of the type HL I stands out for its intelligent hydraulic system with performance control and automatic speed adjustment of 20 up to 35 rpm. The drive unit with Sauer hydraulic pumps and slowly running gear motor achieves a long service life. A torque of of 90.000 – 130.000 Nm, level monitoring, temperature monitoring and overload protection  are further quality features of the crusher!

The switchable und also in automatic mode running comminution process can activate the crushing shaft in both directions of rotation. The feeding material is fed into the hopper, which simultaneously feeds the crushing shaft. Bolted crushing tools guarantee highest throughput even in case of the most difficult feeding material. The hydraulically adjustable side comb with bolted teeth destines the cutting gap to the crushing shaft thereby also the particle size respectively the quality of the feeding material. The bolted crushing tools guarantee a rapid tool change.

• Crusher: Single-Shaft Crusher with an adjustable working speed of 20 – 40 rpm.
• Hydraulic system:
• Hydraulic systems with one tank
• Pumps and motors
• Tank capacity: 190 litres
• Overload protection and auto reverse
• Hopper:
• Made of highly wear-resistant steel
• Hopper dimension: 2.200 x 5.850 mm
• Shaft diameter: 660 mm
• Crushing unit: 19 cutters
• Shaft diameter: 660 mm
• Shaft length: 3.020 mm
• Bolted, highly wear-resistant shaft scrapers and cutters.
• Crushing unit opening: 1.200 x 3.020 mm, covered by crushing shaft
• Engine:
• CAT turbo diesel with a power of P = 261 kW, valid Euro exhaust standard
• Electric motor with a power of P = 250 kW
• Diesel tank: Two tanks, capacity: 300 litres (diesel powered machines)
• Drive:
• Optionally diesel-hydraulic or electro-hydraulic, with automatically adjustable auto reverse.
• The slow-speed motor can be operated at a system pressure of 400 bar, thus transmitting a torque of 90.000 Nm up to 130.000 Nm.
• Performance control:  The performance controlled hydraulic system prevents early reversing and optimizes throughput.
• Service monitoring:
• Fault indications and required service will be displayed by control lights.
• Transport belt monitoring
• Oil temperature
• Cooling water temperature
• Level display, cooling water circuit, oil circuit
• In case of none-observing the fault indication, the machine cuts out automatically in order to prevent unnecessary damages.
• Oil tank heating:
• At temperatures below freezing point, the oil tank heating can be switched on through the mains.
• Discharge conveyor:
• Firmly mounted with cross-stable conveyor belt
• Belt width: 1.200 mm
• Discharge height: approx. 3.000 mm
• Foldable for transportation, belt speed infinitely variable
