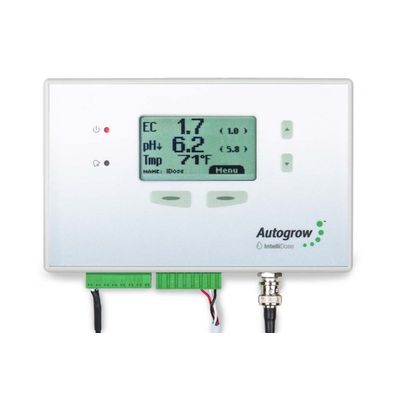

Autogrow - Model IntelliDose - Single Zone Controller
Automatically manage nutrient and pH levels, set remote alarms and data log progress with a nutrient dosing system. IntelliDose sets the industry standard for small commercial auto-dosing. Grower approved for 10 years, the IntelliDose sets the industry standard for automatic nutrient dosing, allowing you to dose up to a 9-part blend (nutrients, additives, pH adjuster) while maintaining your preset EC and pH settings. Automatically manage your nutrient and pH levels, set remote alarms and data-log your progress with one simple controller. Achieve better results with a nutrient dosing system.
Most popular related searches
EASE OF USE
- The large, interactive screen allows you to easily maneuver between calibrating, set points, alarms and configuration. If you can program a number into a cell phone, you can program your IntelliDose.
- The IntelliDose can run up to 4 irrigation stations, allowing different areas of your grow space to be watered on different schedules. Use one reservoir or have a pump feed each station at different times. You can also set your system to only irrigate during the daytime.
- Any nutrient line can be used with the IntelliDose - liquid or powder. Simply determine your proper dilution ratios (don’t worry, we can help) and the IntelliDose will keep the reservoir at your perfect recipe 24/7.
- Peristaltic pumps allow you to have all of your nutrient stock tanks on the ground, allowing for much larger quantities of pre-mixed solutions. This lowers the chance of leaks and spills, and will cut down on your labor. Autogrow’s peristaltic pumps are heavy duty, pumping 300ml/minute and can run any size reservoir (even over 1,000 gallons!) with ease.
- The IntelliDose has the ability to be connected to a PC, but it’s not necessary. Growers should determine their own privacy level; if you don’t want your controller online or connected to a PC, it doesn’t need to be.
- 9 outputs 24VDC (or same voltage as supplied by plug pack)
- Nutrient measurement units EC, CF or TDS (500/640/700)
- Measured range 0.00 to 9.99EC, 0.1 to 99.99CF, 0 to 7000PPM
- Nutrient resolution to .01mS/cm, 0.1CF
- Nutrient measurement accuracy +/-0.1EC, 1.0CF or 10PPM (temperature compensated)
- Nutrient dosing range 0.00 to 5.99EC, 0.1 to 59.9CF, 0 to 4200PPM
- pH resolution and accuracy - 0.1pH
- pH measurement range 2pH to 12pH
- Nutrient and pH dosing times settable from 0 minutes to 254 minutes
- Dosing interval settable from 0 minutes (continuous dosing) to 254 minutes
- Sequential dosing to prevent power surges
- Solution temperature accuracy 1°C/2°F
- Temperature range 0-50°C/32-125°F
- Operating temperature range 0-50°C/32-125°F (not in direct sunlight)
- Power source - 120V/240V into 24VDC plug pack (supplied)
- Dosing shut off
- if nutrient is below 0.1EC, 1.0CF, 10PPM
- if pH is below 4.5 or above 8.0
- if dosing effect is counterintuitive (by dosing pH lower, the measured pH goes up)
