Intuition - Model c - Single-Zone Heating Control System
Product Features: Allows web based control of a single heating zone. (Additional zones can be added - see Options). Programmable timeclock and temperature control; which intelligently calculates times to turn on to maximise benefit. Retrofits existing wired heating controls. Access via mobile device or PC to smartphone app or web dashboard - wherever you have internet. Turn the heating on if you`re coming home early; or turn it off if you`ve left it running.
Most popular related searches
Technical Specifications:
- Network OWL – 868MHz & 433MHz
- Heating Controls – 868MHz
Operating range up to 50m (In free space)
Storage conditions: -25°C to +65°C
Relative humidity: 25% to 95% non-condensing
Operating temperature: 0°C to 40°C
Ingress protection: IP30
Standards Compliance
- IEC 60730-1:2001 / BS EN 60730-1:2001
- BS EN 55014-1:2006+A1:2009
- BS EN 55014-2:1997
- ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
- ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
- R&TTE - WEEE Directive, RoHS, Battery Directive

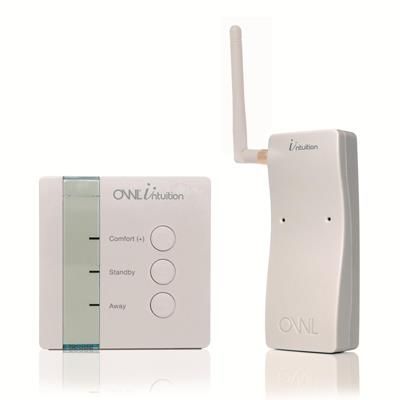

- Network OWL Gateway,
- Room Sensor [RBT-3C] (Battery powered, with Comfort (+), Standby & Away buttons),
- back plate,
- safety wiring cover,
- 4 x AAA alkaline battery,
- Installation Instructions.
PLEASE NOTE: OWL recommends that all Intuition Smart Heating Controls are installed by a qualified heating engineer. Not all boilers can accept external thermostats. Please contact your boiler manufacturer to find out if your boiler is able to accept an external control.
Modules
- OWL Intuition-c consists of the following:
- 1x Network OWL Gateway
- 1x Intuition Room Sensor
Options
- OWL Intuition-c can support the following additions:
- Up to 9 additional Intuition Room Sensors to support additional heating zones (where the heating system has separately controllable zones)*
- Electricity monitoring functionality via a 3-channel Transmitter unit with standard/large sensors (see Electricity Monitors ACCESSORIES tab)*
