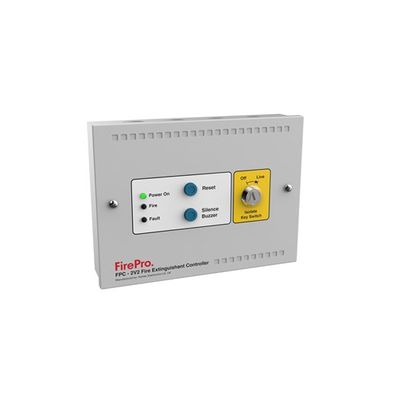

FirePro - Model Sigma FPC-2V2 -Single Zone Panel Protection Controller
The FirePro FPC-2 Panel Protection Controller enables monitoring detection and automatic extinguishing of a fire in an electrical cabinet using linear heat detection cable or automatic smoke detectors and FirePro Aerosol Generators.
The FPC-2 is a single zone panel that can control and monitor up to 4 FirePro aerosol generators. Designed for In-Cabinet fire suppression systems it can receive a single input from most types of fire detection technology.
Relays for Fire and Fault are provided for remote signalling.
A remote 24v DC supply is required.
The FPC-2 has one detection input for connection of linear heat detection cable, smoke detectors or a combination of both which is monitored for disconnection of the detection devices.
Four outputs are provided for the connection of FirePro Aerosol Generators and disconnection of any of these will announce a fault condition.
The FPC-2 requires a battery backed 24V DC power supply capable of delivering 3A for a short period in order to operate the Aerosol Generators. Terminals are provided for incoming and outgoing connection of the 24V DC power supply.
Volt free contacts are available to signal fire and fault conditions to plant or other monitoring equipment. By selecting the appropriate jumper link arrangement, it is possible to signal an addressable input module via a simple, 2 wire connection.
- Overall size: 188mm x 132mm x 47mm
- Construction: 1/2mm sheet steel
- Finish: Epoxy powder coat
- Colour: BS OO A 05 light grey textured
- Operating voltage: 19 to 30 Volts DC
- Standby current: 18 milliamps
- Maximum current: 3 Amps
- Fault monitoring: Detection and actuator circuits (open circuit monitored only)
- Cable entries: 20mm knockouts
- Terminal capacity: 2.52mm maximum
