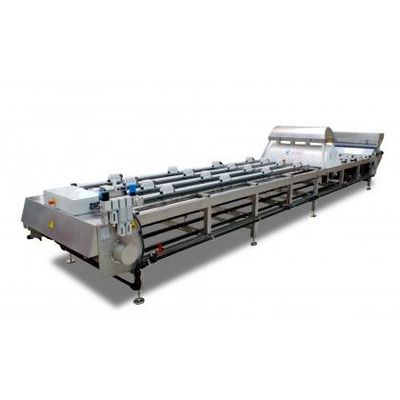

Multiscan - Model i5 Olives Plus - Sizing System

Main features

• Built in stainless steel and polymeric materials adequate for working with food.
• Transport over individual rollers.
• Vision through 4 high definition digital camera.
• Long life LED strobe lights.
• Electronics in a sealed air-conditioned box in stainless steel.
• Controlled by a single PC working with windows.
• Pneumatic ejection system with outputs, configurable by the customer.
• Adequate for all kind of olives.
• Possibility of a remote connection with the Communications Option.
• Simple and versatile handling through a tactile screen.
• Throughput (olive): up to 920,000 fruits/hour for a 80% load.

Technical features

• Operating voltage: 230 VAC. ±10% PH, 50/60Hz
• Power: 6 kW
• Air supply: 3,000 l/min.
• Operating / storage temperature: 10~45ºC/ 5~50ºC.
• Relative operating / storage humidity: 80% non condensing.
• Pneumatic pressure for connection: 8 bar
• Pneumatic pressure for operating: 5 bar
• Weight: 1,000 kg.
