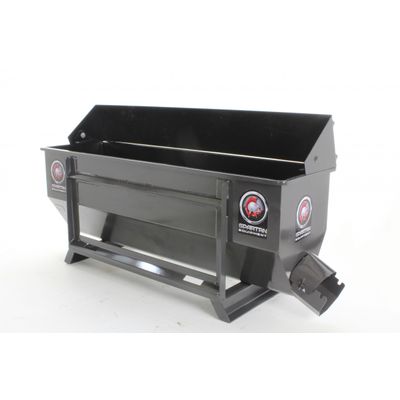

Spartan - Skid Steer Auger Bucket Attachment - Sandbagging Materials
Our Professional Series Auger Bucket - This model is designed for Filling Sand Bags and allowing you to save vital time in situations where storm water management is critical. This unit can also be used to auger for concrete, sand, washed gravel (3/4" max.), agricultural grains and wildlife feed. Includes weld on cutting edge, multi-linked chutes (24" & 36" long) and 7` hose kit with flat faced couplers
Reach hard to maneuver fence lines with our Auger Bucket. Quick-tach mounts on the front and back of the Auger Bucket allows you to hook up to a skid-steer for right and left hand discharge. Fill the Auger Bucket with up to 1/2 yard concrete mix (or 3/4 yard with optional extension) and easily fill post holes. The Auger Bucket neatly fills post holes with no spillage; simply engage the auxiliary hydraulics for accurate and controlled discharge. There are three augers to choose from — the concrete dispensing auger, the mixing dispensing auger and the sand dispensing auger.
There is no need to wheelbarrow and shovel concrete to post holes that are difficult to reach. The Auger Bucket is operated by one person who can easily move from hole to hole. Cleaning is just as easy. Run the auger until all of the concrete material is gone, reverse the auger and spray with a hose. The Auger Bucket makes putting up fence posts easy.
This unit comes equipped with a skid steer universal Quick attach frame on either side allows right- or left-hand discharge.
Self loading from loose piles excellent operator visibility One-person operation. Can be ordered as a concrete mixer with 7' hose kit with flat face couplers included. Two multi-linked chutes (24" & 36" long) included.
1/2 yard capacity is 22 bags (80 lbs. ea.) of premix concrete. 3/4 yard capacity capable with optional hopper extension.
Accurate and controlled discharge - 1/2 yard in 50 seconds
Horizontal steel auger with Eaton hydraulic motor drive
Replaceable protective rubber flighting prevents binding of coarse material.
Universal skid-steer attachment
Overall Height: (A) 27"
Overall Width: (B) 21-1/2"
Overall Length: (C) 74-1/2"
Overall Bucket Length: (D) 68-1/2"
Weight: 380 lbs.
Hydraulic Requirements: 12 GPM 2000 PSI
Auger Length: 61-1/2"
Auger Diameter without Rubber: 4"
Auger Diameter with Rubber: 6-1/2"
Auger Flighting Spacing: 4"
