Cobra - Model T9500-25 - Skyline Logging System
FromUniforest d.o.o.

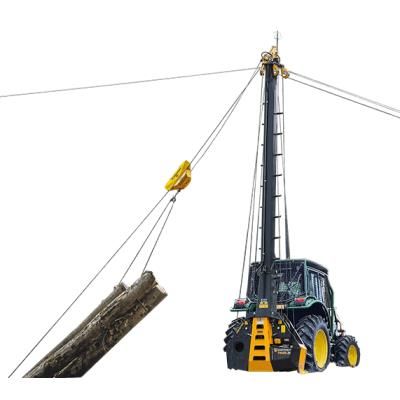

The skyline system COBRA is designed for safe, easy, and quick logging on steep, inaccessible slopes. Skyline or cableway system COBRA includes the T9500/25 tower that can be attached to a tractor with a minimum of 120 hp, 2500HS premium electro-hydraulic carriage, two specially adapted remote controls, two intermediate stations, all accessories for line layout.
Most popular related searches
- Tower height: 9.5m
- Load capacity: 25kN
- Carriage speed: up to 8m/s
- Strong structure and signature design lines
- High-quality materials and components
- Pulling force (kN): 25
- Tension of the load-bearing cable (kN): 75
- Tension of the anchorages (kN): 15
- Pulling cable speed (800 min-1; m/s): 0–8
- Load-bearing cable speed (800 min-1; m/s): 0–3
- Pulling cable length/diameter (m/mm): 500/9
- Load-bearing cable length/diameter (m/mm): 470/16 410/18
- Anchorage cable length/diameter (m/mm): 60/16
- Nr. of anchorages: 4
- Recommended tractor power (kW/hp): 89/120
- Max. RPM (min-1): 800
- Linkage category: II, III
- Control: electro-hydraulic
- Direction of use (°): 220
- Width (mm): 2365
- Depth (mm): 1080
- Tower height (mm): 9540
- Height in transport position (mm): 3400
- Recommended max. tractor height for transport (mm): 3100
- Length in transport position (mm): 7210
- Weight without wire rope (kg): 3487
