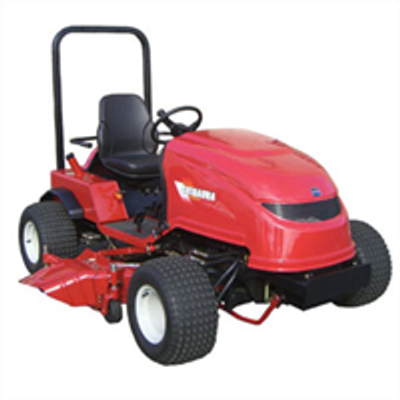

Model SG280 -Slope Mower
Ride on Slope Mower SG280 is designed for mowing on slopes to enable you to finish your jobs faster,easier and with more safety. A high efficiency Shibaura N843 engine complies with exhaust emission regulations. The mower is equipped with a horizontal tilting seat capable of adjusting to an incline of up to 30 degrees for your quick and easy operation.Most popular related searches
High displacement, high output Shibaura N843 diesel engine complying with exhaust emission regulations of 28 hp.
Optimal functions for easy operation and maneuverability.
Low centre of gravity for stability and safety.
Equipped with horizontal tilting seat capable of adjusting to an incline of up to 30 degrees.
Wide variety of grass collectors and deck options to suit individual needs.
| Dimensions&Weight | |
| Length (mm) | 2495 |
| Width (mm) | 1590 / 1910(With mower) |
| Height (mm) | 1200(Steering wheel) / 1730 ( Frame ) |
| Wheelbase(mm) | 1500 |
| Front Tires | 21 x 11.00 - 10 |
| Rear Tires | 21 x 11.00 - 10 |
| Front track tread(mm) | 1310 |
| Rear track tread(mm) | 1310 |
| Lowest ground clearance(mm) | 140 |
| Weight(kg) | 770 / 930(With mower) |
| Engine | |
| MODEL | Shibaura N843 |
| Type | -Cylinder 4-Cycle water cooled diesel engine |
| Displacement(cc) | 1496 |
| Power | [kW (PS) / rpm] 20.6 (28) / 2500 |
| Battery | 75D26L |
| Fuel tank Capacity (L) | 26 |
| Vehicle | |
| Brake | Drum |
| Steering | Hydraulic power steering |
| Shift | L:(4WD) H:(2WD) |
| Speed / Forward(km/h) | L:0-9.0 H:0-18.0 |
| Speed / Reverse(km/h) | L:0-6.0 H:0-12.0 |
| Mower | |
| MODEL | MM60DSG |
| Width of cut(mm) | 1524 |
| Height of cut (mm) | 34-110 |
| Number of Blades | 3 |
| Capacity(a/h) | 64 (Speed 6.0km/h / Efficiency0.7) |
