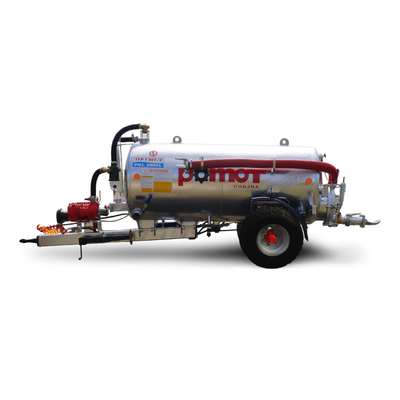

Pomot - Model T507/1 – 2500 Liters Series -Slurry Tanker

Tank

• Hot-dip galvanized tank, galvanized on both sides
• Tank passivation protects fresh zinc coating from the aggressive effects of slurry
• Rear manhole: ø500 mm (on T507/2), ø700 mm (on T507/1, T507/2, T507/6) – manhole cover on a hinge
• Tubular filling level indicator with sight glass
• Drain outlet with 1½” valve at the lowest point of the tank
• 4” sight glass on the rear end plate

Chassis design: self-supporting

• SELF-SUPPORTING – drawbar mounted on reinforced supports under the tank, hot-dip galvanized
• Interchangeable hitch – bolted ø50 mm
• Mechanically adjustable support leg

Wheel assembly

• Single axle, two wheels
• Tires according to the specification table
• Mudguards

Brake system

• Dual-line pneumatic brakes with 4-step braking force adjustment
• Manual parking brake

Compressor

• Type according to the specification table
• Drive speed: 540 rpm or 1000 rpm (on request)

Piping & safety

• Reinforced hoses resistant to temperature connecting the fittings
• Overfill protection with dual-ball valve and sight glass on the top of the tank, plus a siphon with sight glass
• Pressure-vacuum gauge (manovacuumeter)
• Two safety valves: overpressure up to 0.05 MPa and vacuum up to -0.05 MPa
• Oil separator – wet air filter, silencer reducing compressor noise

Suction and discharge connections

• Suction couplings: 4” (ø110 mm), or 6” (ø150 mm) on T507/6
• Main discharge outlet in rear manhole cover: 4” with hydraulic gate valve
• Front left and right side – blanked off, prepared for manual gate valve installation
• Rear coupling – blanked off, prepared for manual gate valve installation

Electrical installation

• 12V system and lighting

Hoses & accessories

• 4” (ø110 mm) hose
• Transport brackets for suction hose
• Hose with strainer basket to prevent suction of large debris
• Suction hose length: 6 m

Spreading device

• Profiled spreading spoon, POMOT design 94, spreading width up to 14 m

Homologation certificate

• Allows registration and operation on public roads

Spreading devices

• Wide-angle spreader (working width up to 14 m)
• Slurry spreader cannon (working width 6–15 m)
• Mobile device for road sprinkling and crop irrigation, width 2.5 m
• Mobile device for road sprinkling and crop irrigation, width 4.5 m
• PERROT-type spreading spoon (working width up to 12 m)
• Double spreading spoon (working width up to 16 m)
• Trailing hose applicator, 3 m working width, POMOT design – mechanically foldable
• Trailing hose applicator, 3 m working width, POMOT design – hydraulically foldable
• Plant watering device

Running gear

• Upper transport hitch (for frame construction only)
• K80 ball hitch
• Hydraulic support leg
• Hydraulic brake
• Two wheel chocks

Filling systems

• Additional 4” manual gate valve
• Additional 6” manual gate valve
• 6” quick coupling for manual gate valve
• Conversion of fittings from 4” to 6”
• 4” suction hose extension, 3 m
• 4” suction hose extension, 6 m
• 6” suction hose extension, 3 m
• 6” suction hose extension, 6 m
• Additional 4” suction hose, 6 m long
• Additional 6” suction hose, 6 m long
• 4” or 6” injector – suction from a depth of 10 m
• Hydraulic drive for the compressor

Accessories

• Two galvanized steel hose boxes
• Level indicator scaled with adhesive markers
• Fully opening rear end plate
• Upper manhole Ø500 with ladder
• W52 coupling with 2” ball valve
• Pneumatic agitator
• Wide-angle PTO shaft
• Plastic toolbox
• Hand washing dispenser
• Additional painting of the galvanized tank (one side)
• Additional painting of the galvanized frame
