Kaweco - Model PROFI I Series -Slurry Tanker

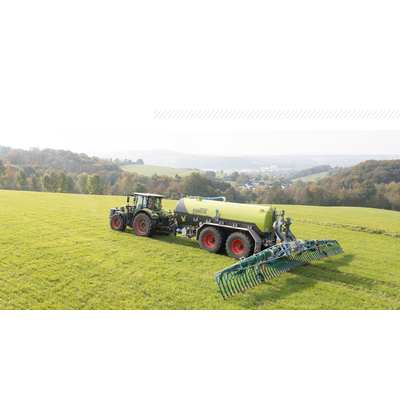

The KAWECO PROFI I tankers stand out because of their light, yet stable build. The tankers can easily be fitted out with a dribble bar spreader with a working width with of up to 15m. Thanks to the modular set-up the tankers are easy to adjust according to your need.
All PROFI I slurry tankers are mechanically able to fit an additional dribble bar applicator. This means that you are always ready for the future, even with changing legislations. Thanks to the stable construction of the tanker, the applicator (trailing shoe or dribble bar) can be upgraded to a maximum working width of 15m. KAWECO has strong relationships with several suppliers of premium applicators.
Integrating the undercarriage in the tanker decreases the tare weight while at the same it increases the stability of the machine. Thanks to the double wheel arches, the axles can be mounted on top of the spring assembly of the buggy. This results in a low center of gravity and a maximum height of 3.25m (with a tire size of 750/60R30.5). For optimum protection the tanker undergoes a special treatment. The tanker gets covered with a zinc layer (galvanization). To be able to spray the zinc layer properly, it gets thoroughly sanded first. This treatment results in a tanker protection that will be corrosion-proof for years and that is easy to clean. An option is to spray the tanker in two different colors. The inside of the tanker is treated with a special epoxy-resin. Thanks to its thickness and flexibility the tanker is better able to withstand any circumstances.
The very narrow drawbar makes a PROFI I tanker very easy to maneuver. The tankers standardly comes with a rear free steering axle. When the tanker is optionally fitted with forced steering, the steering cylinder is placed on the left, next to the drawbar. Because of the crash protection the maximum steering angle is limited. The system is installed to protect the steering cylinder. The coupling height can be changed with the extra holes in the drawbar. As an option, the drawbar can be fitted with hydraulic drawbar suspension, which results in greater comfort.
The PROFI I tankers are available as vacuum (VC version), rotary lobe pump (PTW version) and eccentric screw pump (ESP version) tankers. By default, the PTW tankers are delivered with a Vogelsang VX186-184Q pump. This pump delivers 4.266 l/min at 600rpm. Thanks to a unique slanted plate in front of the entry of the pump any contamination will be caught in between the two rotors. This results in less damage to the lobes and the casing of the pump. Click here to see a video from Vogelsang Injection System. As an option we have a Vogelsang VX186-260Q pump with a capacity of 6,000l/min at 600rpm available. To guarantee a high degree of operational reliability and high pump capacity the PTW models come with a standard special pump chamber. This is mounted before the pump and guarantees a minimum amount of slurry in the intake piping of the pump. Thanks to the continuous filling of the pump it can never run dry and it will reach a negative pressure a lot faster. This will ultimately increase the capacity of the pump and reduce wear.
Advantages of the PTW-tanker are: precise dosing and high filling capacity. The filling of the tank remains guaranteed, regardless of the thickness of the slurry. In addition, the filling capacity is better maintained with greater suction depth. Possible limitations of the PTW-tanker are: relatively high maintenance costs and more wear and tear. The weight of the machine is also increased by the required piping.
All PROFI I vacuum tanks are equipped as standard with very high quality BP vacuum pumps. The standard pumps have a compressor capacity of no less than 13,500 L/min. This capacity is realized by a rotor with 4 inclined rotor blades. The blades are cooled and lubricated by an oil drip pump. In order to further improve the cooling and to keep the capacity at the same level during the work, the pumps are standard equipped with direct air injection. When the pump is at a standstill, a special valve ensures that the vacuum is maintained.
Advantages of the vacuum tank include: little wear and tear, low maintenance costs and low own weight. Disadvantages are: the dosage, the capacity during filling and unloading. Furthermore, during filling, the slurry is, as it were, pulled apart by the air displacement. As a result, the tank is never completely filled.
Click here for a video of the Battioni Pagani Ballast pumps.
The PROFI I ESP tanks are standard equipped with high quality WANGEN worm pumps, with a capacity of 4,000 l/min at 540 rpm. Larger worm pumps are optionally available. The WANGEN pump has a compact design and is built lengthwise underneath the tank. In this way, the slurry route consists of as few bends as possible. Just like the PTW version, the ESP version is equipped with a three-way valve for switching between filling and emptying.
The advantages of the worm pump are: the large passage of unwanted parts in the slurry and the low maintenance costs.
- Net contents [L]: Tandem 14,400, 16,200, 17,600
- Undercarriage: Roll-over Buggy
- Control system: Rear axle lagging control (rigid control is optional)
- Axle base [mm]: 14,400 L = 1,700 mm. 16,200 & 17,600 = 1,810 mm.
