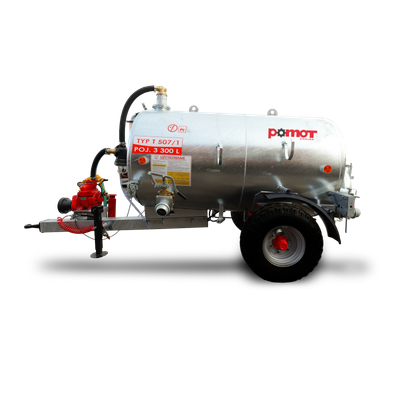

Pomot - Model T507/1- 3300 Liters Series -Slurry Tanker

Tank

• Double-sided hot-dip galvanized tank
• Tank passivation protecting fresh galvanizing against the effects of slurry
• Rear manhole Ø500 mm (in T507/2), Ø700 mm (in T507/1, T507/2, T507/6) – hinged cover
• Tubular filling level indicator with sight glass
• Drain outlet with 1½” valve – located at the lowest point of the tank
• 4” sight glass on the rear tank bottom plate

Tanker construction: self-supporting

• SELF-SUPPORTING – drawbar mounted on reinforced supports under the tank, hot-dip galvanized
• Replaceable coupling – screwed, Ø50 mm
• Mechanically adjustable support leg
• Single-axle wheelset, two wheels
• Tires according to the table
• Mudguards
• Pneumatic dual-circuit brake system with 4-level brake force adjustment
• Manual parking brake
• Compressor – type according to the table
• PTO drive at 540 rpm or 1000 rpm – optional
• Reinforced temperature-resistant hoses connecting the fittings
• Overfill protection via two-ball valve with sight glass at the top of the tank and siphon with sight glass
• Pressure/vacuum gauge
• Two safety valves: overpressure up to 0.05 MPa and vacuum up to -0.05 MPa
• Oil separator – wet air filter, silencer to reduce compressor noise
• Suction nozzles 4” Ø110 mm (in T507/6 – 6” Ø150 mm)
• Main drain nozzle in the rear manhole cover 4” – with 4” hydraulic gate valve
• Front left and right nozzles – sealed, prepared for manual gate valve installation
• Rear nozzle – sealed, prepared for manual gate valve installation
• 12V electrical and lighting installation
• 4” hose (Ø110)
• Transport handles for suction hose
• Suction hose with basket – protects against intake of large debris
• Suction hose length – 6 m

Spreading device

• Profiled spreading spoon, POMOT 94 pattern, spreading width up to 14 m

Homologation certificate

• Enables registration and operation on public roads

Spreading Devices

• Wide-angle spreader (working width up to 14 m)
• Slurry thrower (working width from 6 to 15 m)
• Portable device for road spraying and crop irrigation, 2.5 m width
• Portable device for road spraying and crop irrigation, 4.5 m width
• PERROT type spreading spoon (working width up to 12 m)
• Double spreading spoon (working width up to 16 m)
• POMOT trailing hose injector unit with a working width of 3 m – mechanically foldable
• POMOT trailing hose injector unit with a working width of 3 m – hydraulically foldable
• Plant watering device

Chassis

• Upper transport hitch (only for frame construction)
• K80 ball hitch
• Hydraulic support leg
• Hydraulic brake
• 2 wheel chocks

Filling Systems

• Additional manual gate valve 4″
• Additional manual gate valve 6″
• Quick coupling for 6″ manual gate valve
• Conversion of fittings from 4″ to 6″
• Suction hose extension 4″ – 3 m length
• Suction hose extension 4″ – 6 m length
• Suction hose extension 6″ – 3 m length
• Suction hose extension 6″ – 6 m length
• Additional suction hose 4″ – 6 m length
• Additional suction hose 6″ – 6 m length
• Injector 4″ or 6″ – suction from depth of 10 m
• Hydraulic compressor drive

Accessories

• Two galvanized metal hose boxes
• Calibration of tubular indicator with stickers
• Fully openable rear tank bottom
• Upper manhole Ø500 mm with ladder
• W52 fitting with 2″ ball valve
• Pneumatic agitator
• Wide-angle power take-off shaft
• Plastic tool box
• Hand wash dispenser
• Additional painting of galvanized tank (one side)
• Additional painting of galvanized frame
